HDL 1CH Wireless Dimmer

SKU: HDL-MPD01-RF.28

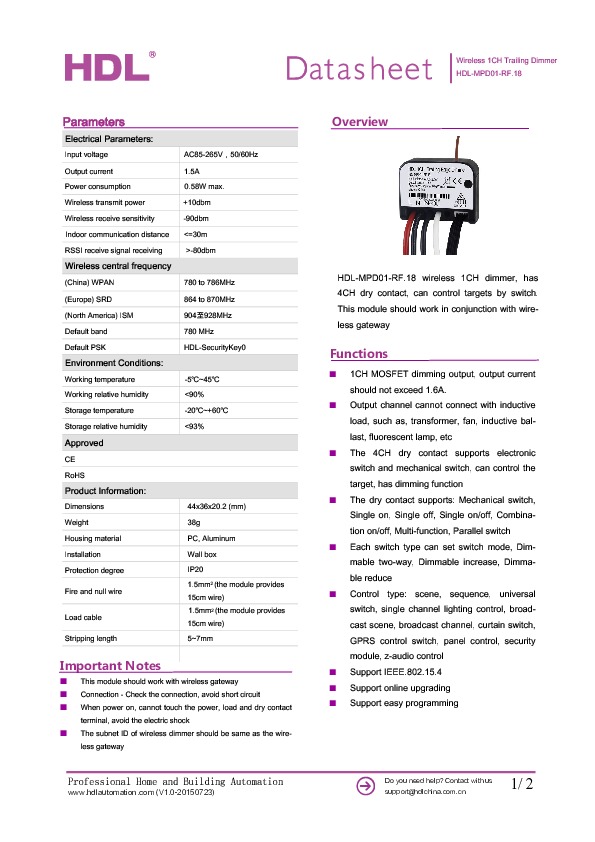

  Product Documents

HDL 1CH Wireless Dimmer


The HDL-MPD01-RF.18 wireless 1CH dimmer, has 4CH dry contact, can control targets by switch. This module should work in conjunction with wireless gateway.

Functions:

  • 1CH MOSFET dimming output, output current should not exceed 1.6A
  • Output channel cannot connect with inductive load, such as, transformer, fan, inductive ballast, fluorescent lamp, etc.
  • The 4CH dry contact supports electronic switch and mechanical switch, can control the target, has dimming function
  • The dry contact supports: Mechanical switch, Single on, Single off, Single on/off, Combination on/off, Multi-function, Parallel switch
  • Each switch type can set switch mode, Dimmable two-way, Dimmable increase, Dimmable reduce
  • Control type: scene, sequence, universal switch, single channel lighting control, broadcast scene, broadcast channel, curtain switch, GPRS control switch, panel control, security module, z-audio control
  • Support IEEE.802.15.4
  • Support online upgrading
  • Support easy programming

Electrical Parameters:

  • Input voltage: AC85-265V, 50/60Hz
  • Output current: 1A
  • Power consumption: 0.58W max.
  • Wireless transmitting frequency: +10dbm
  • Wireless receiving sensitivity: -90dbm
  • Indoor communication distance: ?30m
  • RSSI: >-80dbm

Wireless Central Frequency:

  • (China) WPAN: 780MHz to 786MHz
  • (Europe) SRD: 864MHz to 870MHz
  • (North America): 904MHz to 928 MHz
  • Default band: 780MHz
  • Default PSK: HDL-SecurityKey0

Approved:

  • CE
  • RoHS

Product Information:

  • Dimensions: 44x36x20.2(mm)
  • Weight: 38g
  • Housing material: PC, aluminum
  • Installation: Wall box
  • Protection: IP20
  • Fire and null wire: 1.5mm2 (the module provides 15cm wire)
  • Load cable: 1.5mm2(the module provides 15cm wire)
  • Stripping length: 5~7mm
