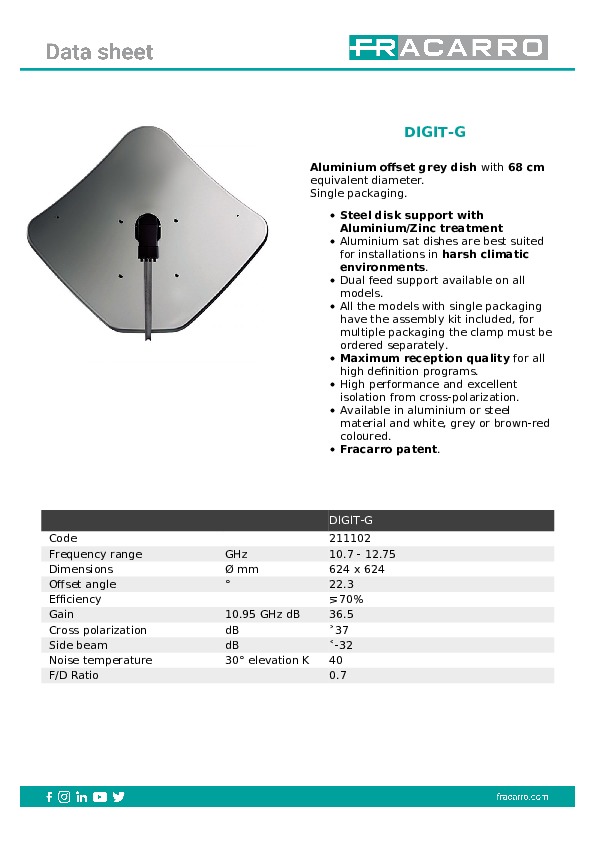

Aluminium offset grey dish with 68 cm equivalent diameter.
Main features:
- Steel disk support with Aluminium/Zinc treatment
- Aluminium sat dishes are best suited for installations in harsh climatic environments.
- Dual feed support available on all models.
- All the models with single packaging have the assembly kit included, for multiple packaging the clamp must be ordered separately.
- Maximum reception quality for all high definition programs.
- High performance and excellent isolation from cross-polarization.
Frequency range GHz: 10.7 – 12.75
Dimensions Ø mm: 624 x 624
Offset angle °: 22.3
Efficiency: ⋝70%
Gain 10.95 GHz dB: 36.5
Cross polarization dB: ˃37
Side beam: dB: ˂-32
Noise temperature 30° elevation K: 40
F/D Ratio: 0.7
Beam width 3dB: 3
LNB Clamp mm: 23-28; 40; 60
Elevation Angle angle: Maximum tilt 60°
Material: Aluminium
Bracket material: Steel – Aluminium/Zinc treatment
Wind load 150 km/h kg: 53
Diameter : 68
Colour: Grey
Dual feed dual feed 6°: DFPDIGIT cod. 211003
Mounting kit: ZNCDGT included
