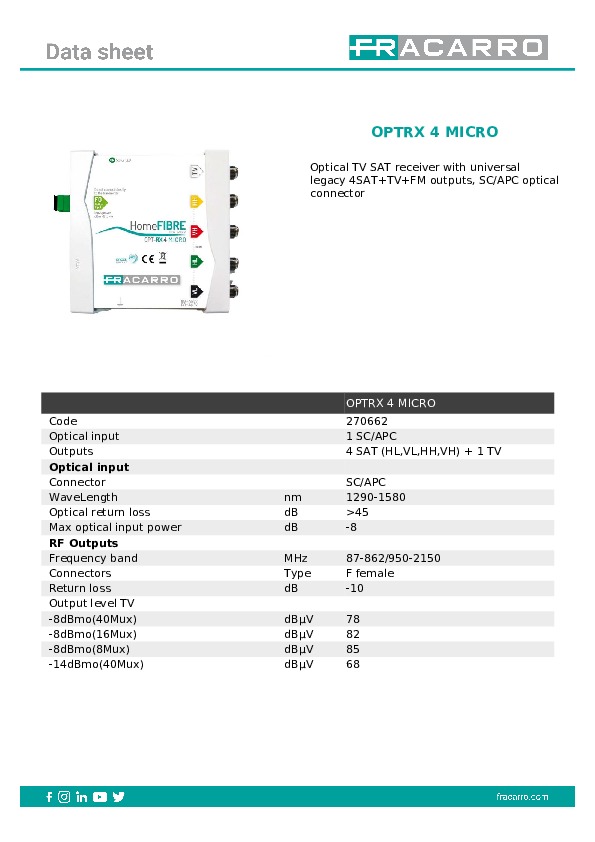

OPTRX 4 MICRO
Optical TV SAT receiver with universal legacy 4SAT+TV+FM outputs, SC/APC optical connector
Optical input: 1 SC/APC
Outputs: 4 SAT (HL,VL,HH,VH) + 1 TV
Optical input
Connector: SC/APC
WaveLength nm: 1290-1580
Optical return loss dB: >45
Max optical input power dB: -8
RF Outputs
Frequency band MHz: 87-862/950-2150
Connectors Type: F female
Return loss dB: -10
Output level TV
-8dBmo(40Mux) dBµV: 78
-8dBmo(16Mux) dBµV: 82
-8dBmo(8Mux) dBµV: 85
-14dBmo(40Mux) dBµV: 68
-14dBmo(16Mux) dBµV: 72
-14dBmo(8Mux) dBµV:75
Output level SAT
-8dBmo dBµV: 82
-14dBmo dBµV: 70
Features
Power supply: Vac/Hz
Consumption W: 2.5
Current consumption mA, V: 180, 12
Power supply V: 14/18 on all outputs
Operating temperature °C -5 – +50
Leds dBµV: Power status green LED
Standard conformity: 2014/53/UE, 2011/65/UE
Dimensions mm: 120x100x30
