BLUSTREAM HDBaseT™ CSC 4 way Splitter

4K at 60Hz 4:4:4 to 40m(1080p to 70m) EDID
Audio Breakout HDCP2.2 - 5 Year Warranty

SKU: HSP14CS

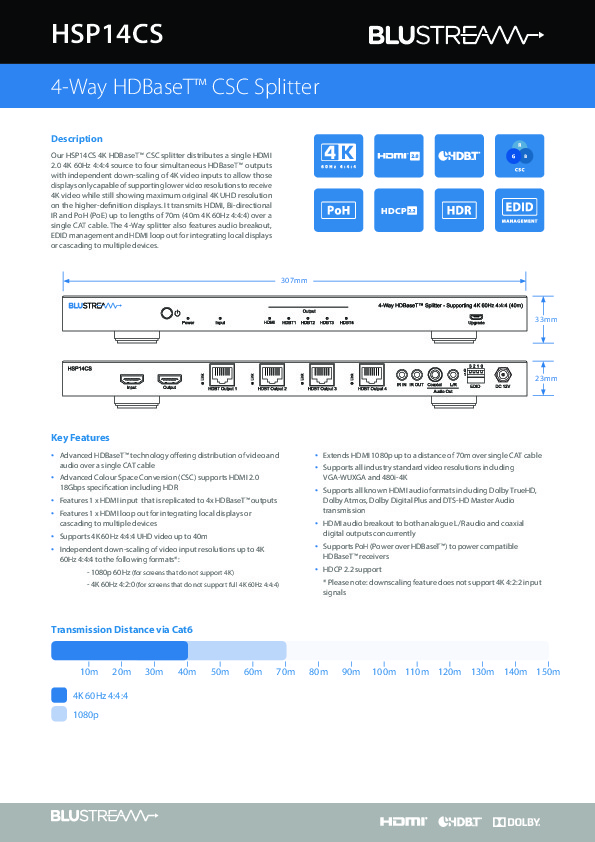

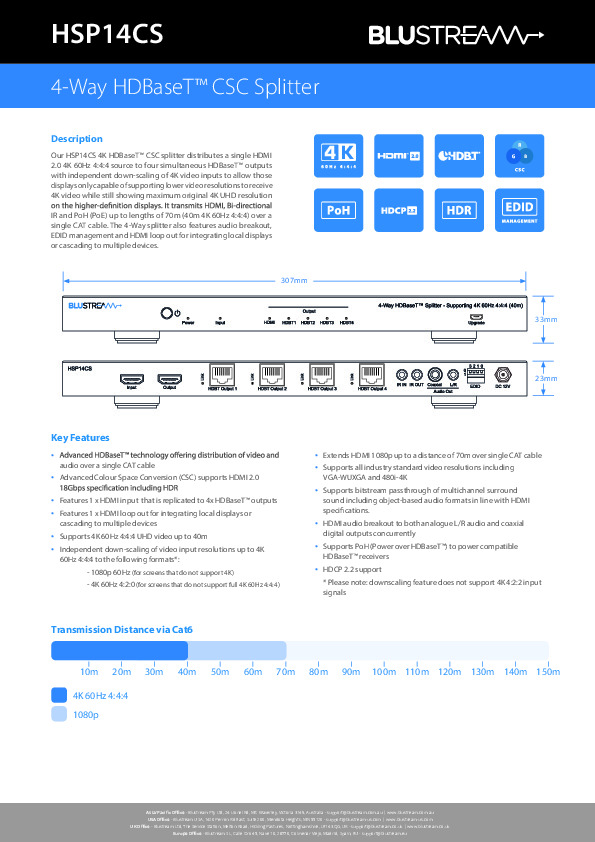

  Product Documents

BLUSTREAM HDBaseT™ CSC 4 way Splitter

4K at 60Hz 4:4:4 to 40m(1080p to 70m) EDID
Audio Breakout HDCP2.2 - 5 Year Warranty


The HSP14CS 4K HDBaseT™ CSC splitter distributes a single HDMI 2.0 4K 60Hz 4:4:4 source to four simultaneous HDBaseT™ outputs with independent down-scaling of 4K video inputs to allow those displays only capable of supporting lower video resolutions to receive 4K video while still showing maximum original 4K UHD resolution on the higher-definition displays. It transmits HDMI, Bi-directional IR and PoH (PoE) up to lengths of 70m (40m 4K 60Hz 4:4:4) over a single CAT cable. The 4-Way splitter also features audio breakout, EDID management and HDMI loop out for integrating local displays or cascading to multiple devices.

Main features :

  • Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
  • Advanced Colour Space Conversion (CSC) supports HDMI2.0 18Gbps specification including HDR
  • Features 1x HDMI input that is replicated to 4x HDBaseT™ outputs
  • Features 1x HDMI loop out for integrating local displays or cascading to multiple devices
  • Supports 4K 60Hz 4:4:4 UHD video up to 40m
  • Independent down-scaling of video input resolutions up to 4K 60Hz 4:4:4 to the following formats*:
  • 1080p 60Hz (for screens that do not support 4K)
  • 4K 60Hz 4:2:0 (for screens that do not support full 4K 60Hz 4:4:4)
  • Extends HDMI 1080p up to a distance of 70m over single CAT cable
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
  • HDMI audio breakout to both analogue L/R audio and coaxial digital outputs concurrently
  • Supports PoH (Power over HDBaseT™) to power compatible HDBaseT™ receivers
  • Compatible with the following Blustream HDBaseT™ receivers:
  • HEX70CS-RX (recommended for where resolutions up to 4K 60Hz 4:4:4 are required)
  • Also compatible with HEX70B-RX & HEX70ED-RX (system will be limited to 4K 60Hz 4:2:0 8-bit maximum)
  • HDCP2.2 support
  • Please note: downscaling feature does not support 4K 4:2:2 input signals
