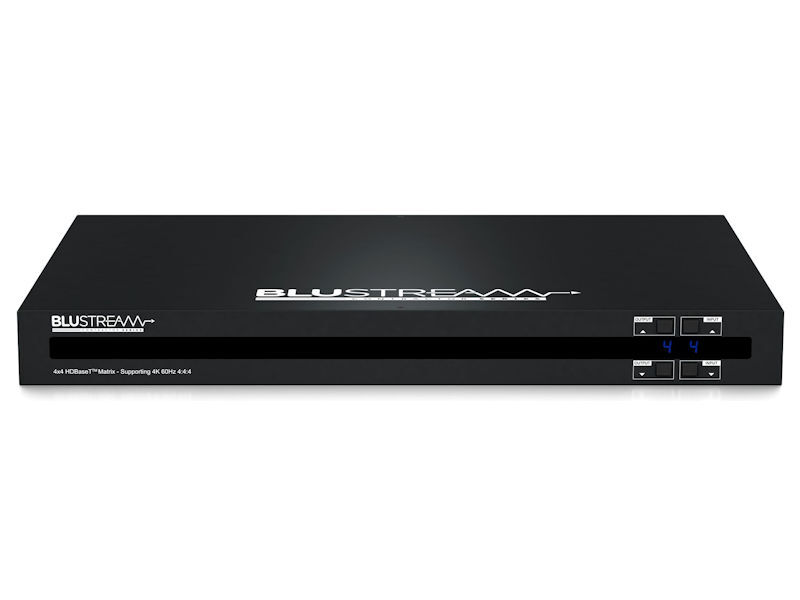

The Blustream Contractor 4x4 HDBaseT™ matrix offers unprecedented performance and value for the custom installation market.The C44CS-KIT is a HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 Matrix utilising CSC technology to deliver HDMI, bi-directional IR, andPoC up to lengths of 70m over a single CAT cable.
The matrix also provides advanced features including simultaneous HDBaseT™ / HDMI on output 1, video down conversion on HDBaseT™ outputs and a web browser interface module for control and configuration of the matrix.
The C44CS-KIT is supplied with 4 x RX70CSL receivers.
Key Features:
- Advanced HDBaseT™ technology offering distribution ofvideo and audio over a single CAT cable
- Advanced Colour Space Conversion (CSC) supports HDMI 2.018Gbps specification including HDR*
- Features 4 x HDMI inputs which can be independently routed to 4 x HDBaseT™ outputs
- Output 1 features simultaneous HDMI and HDBaseT™ output
- Video down-conversion on HDBaseT™ outputs allowing adisplay only capable of supporting lower video resolutions (4K60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video contentwhile still showing maximum original 4K UHD resolution on remaining video outputs
- Supports 4K 60Hz 4:4:4 UHD video up to 40m
- Extends HDMI 1080p video up to 70m
- Supports all industry standard video resolutions includingVGA-WUXGA and 480i-4K
- Supports all known HDMI audio formats including DolbyTrueHD, Dolby Atmos, Dolby Digital Plus and DTSHD
- Master Audio transmission
- Web interface module for control and configuration of matrix
- Supports bi-directional IR on all HDBaseT™ outputs
- Control via front panel, iOS / Android App, IR, RS-232 or TCP/IP
- Supports 12V PoC (Power over Cable) to power compatible HDBaseT™ receivers
- Supplied with Blustream IR receivers and emitters
- 3rd party drivers available for all major control brands
- 1U design for 19” rack mount integration - mounting kit
*CSC feature compatible with RX70CSL only
Specifications:
C44CS - Matrix:
- Video Input Connectors: 4 x HDMI Type A, 19-pin, female
- Video Output Connectors: 1 x HDMI Type A, 19-pin, female, 4 x HDBaseT™ RJ45 connectors
- TCP/IP Control: 1 x RJ45, female
- RS-232 Serial Ports: 1 x DB-9, female
- IR Input Ports: 5 x 3.5mm stereo jack
- IR Output Ports: 4 x 3.5mm mono jack
- Rack Mountable: 1U rack height, rack ears included
- Casing Dimensions (W x H x D): 437mm x 44mm x 300mm (without feet)
RX70CSL Receiver:
- Video Input Connectors: 1 x HDBaseT™ RJ45 connectors
- Video Output Connectors: 1 x HDMI Type A
- IR Input Ports: 1 x 3.5mm stereo jack
- IR Output Ports: 1 x 3.5mm mono jack
- Casing Dimensions (W x H x D): 85mm x 24mm x 120mm
- Mounting Wings: Supplied
C44CS-KIT:
- Power Supply: Internal 100-240V AC
- HDBT Power Output: 12V DC 0.8A per port
- Operating Temperature: 23°F to 122°F (-5°C to +50°C)
- Storage Temperature: -13°F to 158°F (-25°C to +70°C
Box Contents:
1 x C44CS Matrix
4 x RX70CSL Receivers
1 x Rack Mounting Kit
4 x Mounting Kits for RX70CSL
4 x Mounting Feet
1 x Remote Control
4 x IR Emitters
5 x IR Receivers
1 x Serial Cable - DB9 to DB9
1 x IR Control Cable - 3.5mm-3.5mm Cable
1 x Quick Reference Guide
IEC Power Cable(s)
