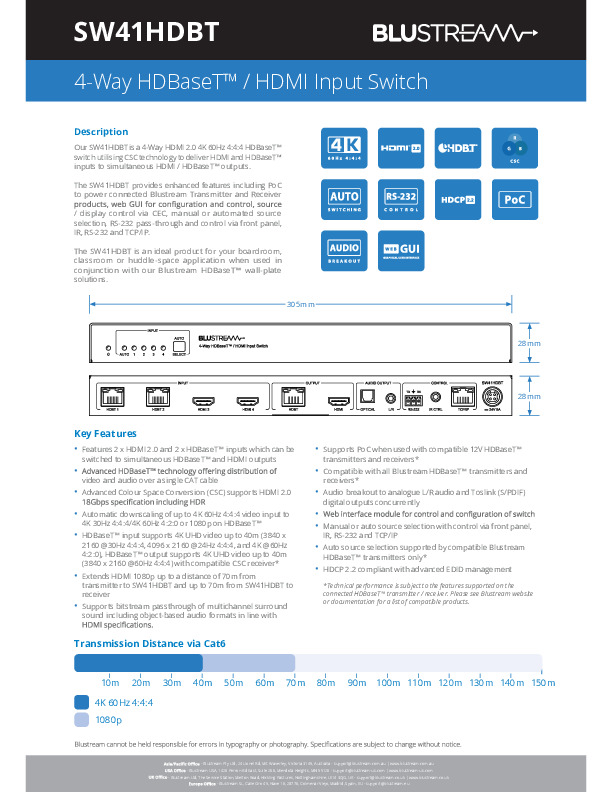

The SW41HDBT is a 4-Way HDBaseT™ switch with HDBaseT™ or HDMI output. The SW41HDBT provides enhanced features including PoC to power Blustream Transmitter and Receiver products, web GUI for control and configuration, manual or automated source selection, IR pass-through and control via front panel, IR, RS-232 and TCP/IP. The SW41HDBT is an ideal product for your boardroom, classroom or huddle-space application when used with our Blustream HDBaseT™ wall-plate solutions.
Main features:
- Switches 4x HDBaseT™ inputs to either HDBaseT™ or HDMI output
- Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
- Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
- Extends HDMI 1080p up to a distance of 70m
- Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
- Supports PoC when used with compatible HDBaseT™ Transmitters and Receivers
- Compatible with all Blustream HDBaseT™ Transmitters and Receivers*
- Web interface module for control and configuration of switch
- Manual or auto source selection with control via front panel, IR, RS-232 and TCP/IP
• Auto source selection supported by compatible Blustream HDBaseT™ Transmitters only*
- Bi-directional IR and CEC pass-through
- HDCP 2.2 compliant with advanced EDID management
*Technical performance is subject to the features supported on the connected HDBaseT™ Transmitter/Receiver. Please see documentation for a list of compatible products
