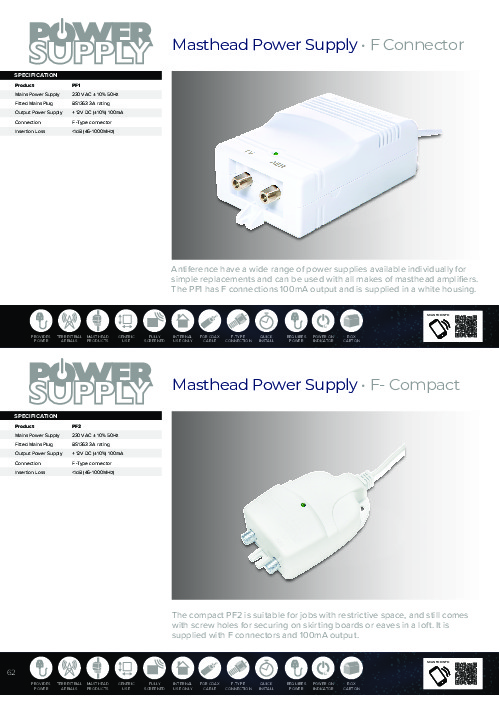

The PF1 Power Unit from Antiference is designed to inject 12 volts DC onto a coaxial TV aerial cable, in one direction to power a masthead amplifier or similar line powered device with minimal insertion loss.
Main features:
- 12v masthead amplifier up to a maximum 100mA load
- Fully screened
- Female F-connectors
- Fitted with a mains Plug BSI363 3A rating
- Short circuit and overload protected
Mains Supply: 230v AC +/- 10% 50Hz
Power Indicator: Red L.E.D
Line Power Out: + 12v DC (+/10%) 100mA
Insertion Loss: < 1dB (46-1000MHz)
Screening: EN50083-2
