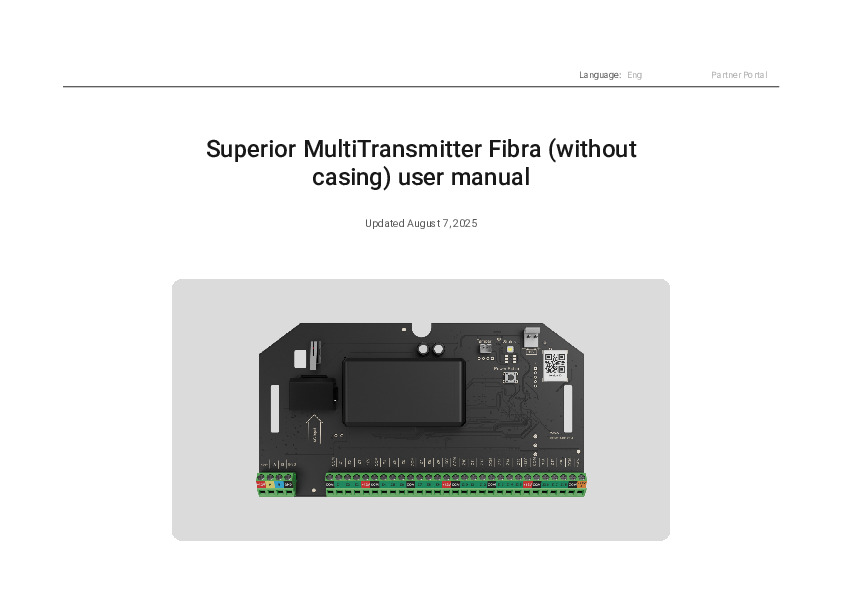

Superior MultiTransmitter Fibra (without casing) is an integration module board designed to connect third-party wired devices to an Ajax system. The board can be installed into Case D (430) . It features 18 zones for connecting NC, NO, EOL, 2EOL, and 3EOL devices. The integration module is available in two versions: either in default casing or as a board without casing. The former is called Superior MultiTransmitter Fibra.
Superior MultiTransmitter Fibra (without casing) has a connector for attaching the tamper board to the module when installed into Case to protect it from dismantling. It is equipped with two tampers on the front and rear sides of the board, though they are not currently used in this version of the integration module. The device is powered from the 100–240 V~ mains, and can also be powered from the 12 V⎓ backup battery. It can supply 10.5–15 V⎓ power to connected devices.
- First tamper button. Unused in this version of the integration module. In Superior MultiTransmitter Fibra, this tamper button signals when trying to remove the lid of its casing.
- Integration module’s 100–240 V~ main power supply input.
- Terminals for connecting the integration module to the hub.
- Terminals (zones) for connecting wired detectors.
- Fire detector power supply terminals
- Power button.
- QR code with the device ID for adding the integration module to an Ajax system.
- Terminals for connecting a 12V backup battery
- LED indicator.
- Connector for attaching the tamper board to the module. The tamper board is included in the Case complete set, which is sold separately.
- Second tamper button. Unused in this version of the integration module. In Superior MultiTransmitter Fibra, this tamper button signals when trying to tear off the integration module casing from the surface.
