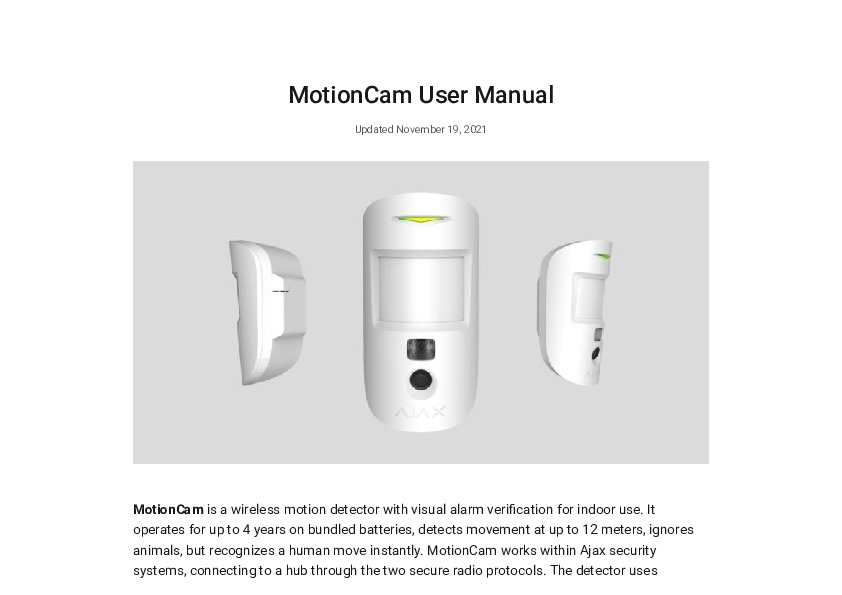

MotionCam is a wireless motion detector with visual alarm verification for indoor use. It operates for up to 4 years on bundled batteries, detects movement at up to 12 meters, ignores animals, but recognizes a human move instantly. MotionCam works within Ajax security systems, connecting to a hub through the two secure radio protocols. The detector uses Jeweller to transmit alarms and events, and Wings to transmit photos. Wireless coverage may reach up 1,700 m line-of-sight.
The detector is compatible only with Hub 2 or Hub 2 Plus. Connection to Hub, Hub Plus, ReX radio signal range extender, ocBridge Plus and uartBridge integration modules are not supported!
The detector is configured via iOS, Android, macOS, and Windows-based Ajax apps. Users are alerted of all alarms and events via push notifications, SMS, and calls (if enabled).
The Ajax security system can be used for self-reliant monitoring, or can be connected to a security company’s central monitoring station.
Main features:
- LED indicator
- Motion detector lens
- Infrared illumination for shooting in the dark
- SmartBracket mounting panel (the perforated part is necessary for tamper activation in case of an attempt to detach the detector from the surface)
- Tamper button
- Power button
- QR code
Sensitive element: PIR sensor
Motion detection range: Up to 12 m
Motion detector viewing angle (H/V): 88.5°/80°
Time for motion detection: From 0.3 to 2 m/s
Image resolution: Up to 640 × 480 pixels
Number of photos taken when alarm is raised: Up to 5 photos/single alarm
Infrared illumination for shooting in the dark: Yes
Pet immunity: Weight up to 20 kg, height up to 50 cm
Tamper protection : Yes
Frequency band: 868.0 – 868.6 MHz or 868.7 – 869.2 MHz, depending on the sales region
Compatibility: Operates only with Hub 2 and Hub 2 Plus
CMS compatibility : Motion alarms are transmitted to CMSs that support SIA (DC-09) and Contact ID protocols.
Maximum RF output power: Up to 20 mW
Radio signal modulation: GFSK
Radio signal range (line-of-sight): Up to 1,700 m
Power supply: 2 CR123A batteries, 3 V
Battery life: Up to 4 years
Installation: Indoors
Operating temperature range:From 0°C to +40°C (manufacture date up to June 1, 2020) / From -10°C to +40°C (manufacture date from June 1, 2020)
Operating humidity: Up to 75%
Overall dimensions: 135 × 70 × 60 mm
Weight: 167 g
Service life:10 years
