AJAX Keypad - White

Two Way Wireless Keypad
2 Year Warranty

SKU: 22676

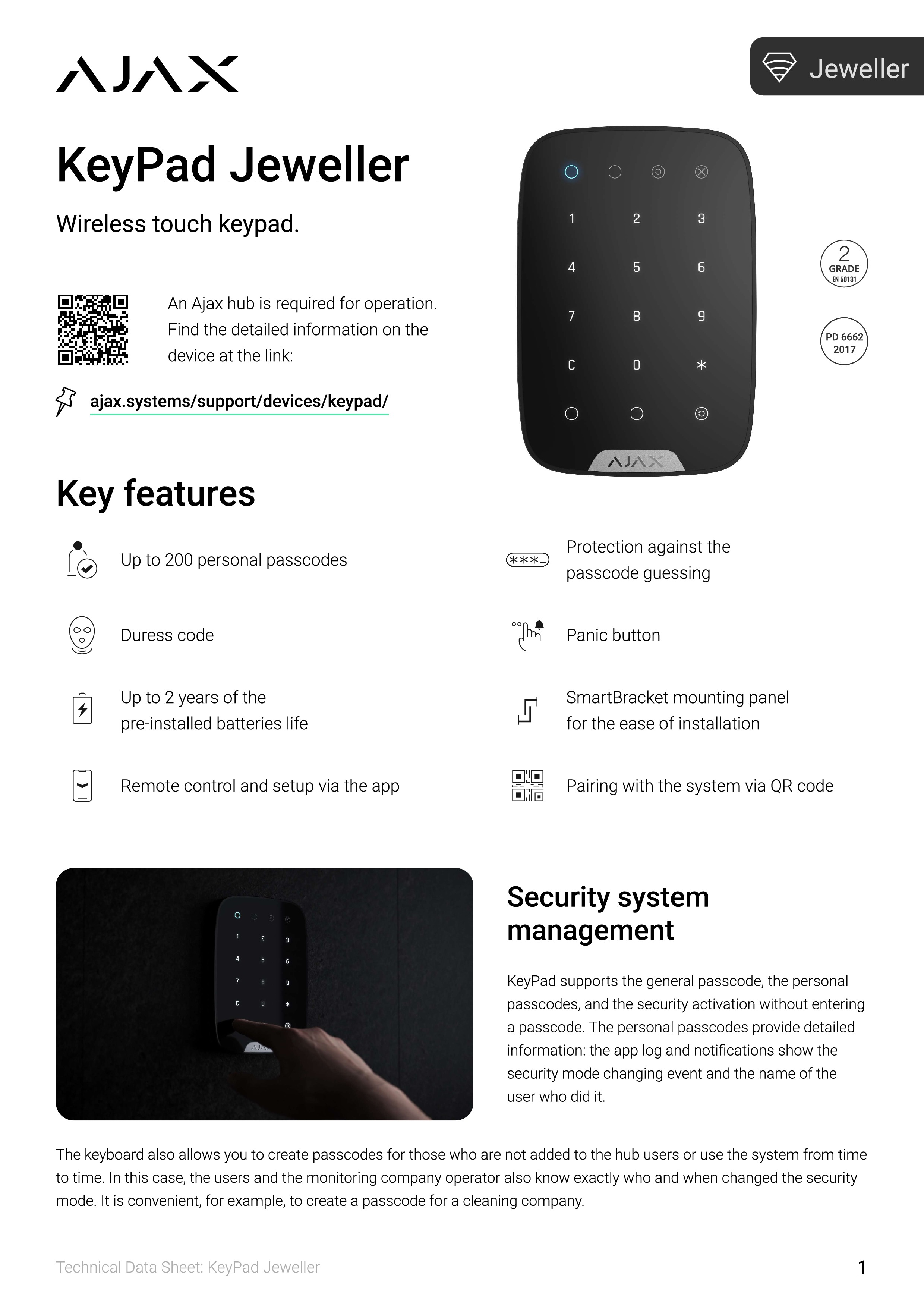

  Product Documents

AJAX Keypad - White

Two Way Wireless Keypad
2 Year Warranty


KeyPad is a wireless indoor touch-sensitive keyboard for managing the Ajax security system. Designed for indoor use. With this device, the user can arm and disarm the system and see its security status. KeyPad is protected against attempts to guess the passcode and can raise a silent alarm when the passcode is entered under duress.

Connecting to the Ajax security system via a secured Jeweller radio protocol, KeyPad communicates with the hub at a distance of up to 1,700 m in line of sight.

KeyPad operates with Ajax hubs only and does not support connecting via ocBridge Plus or uartBridge integration modules.

Main features:

  • Armed/disarmed indicator
  • Night mode indicator
  • Tamper button
  • QR code
  • Silent alarm when someone forces the user to disarm the system
  • Illuminated buttons
  • Bleeper sound
  • When switching to sleep mode, KeyPad clears the entered commands
  • The device is set up via the Ajax apps for iOS, Android, macOS, and Windows

Sensor type: Capacitive
Anti-tamper switch: Yes
Protection against passcode guessing: Yes
Frequency band: 868.0 - 868.6 MHz or 868.7 - 869.2 MHz depending on the region of sale
Compatibility: Operates only with all Ajax hubs, and range extenders
Maximum RF output power : up to 20 mW
Modulation of the radio signal: GFSK
Radio signal range:Up to 1,700 m (if there are no obstacles)
Power supply: 4 × AAA batteries
Power supply voltage: 3 V (batteries are installed in pairs)
Battery life: Up to 2 years
Installation method: Indoors
Operating temperature range: From -10°C to +40°C
Operating humidity: Up to 75%
Overall dimensions: 150 × 103 × 14 mm
Weight: 197 g
Service life: 10 years
Certification: Security Grade 2, Environmental Class II in conformity with the requirements of EN 50131-1, EN 50131-3, EN 50131-5-3

Connecting to the Ajax security system via a secured Jeweller radio protocol, KeyPad communicates with the hub at a distance of up to 1,700 m in line of sight.

KeyPad operates with Ajax hubs only and does not support connecting via ocBridge Plus or uartBridge integration modules.

Main features:

  • Armed/disarmed indicator
  • Night mode indicator
  • Tamper button
  • QR code
  • Silent alarm when someone forces the user to disarm the system
  • Illuminated buttons
  • Bleeper sound
  • When switching to sleep mode, KeyPad clears the entered commands
  • The device is set up via the Ajax apps for iOS, Android, macOS, and Windows

Sensor type: Capacitive
Anti-tamper switch: Yes
Protection against passcode guessing: Yes
Frequency band: 868.0 - 868.6 MHz or 868.7 - 869.2 MHz depending on the region of sale
Compatibility: Operates only with all Ajax hubs, and range extenders
Maximum RF output power : up to 20 mW
Modulation of the radio signal: GFSK
Radio signal range:Up to 1,700 m (if there are no obstacles)
Power supply: 4 × AAA batteries
Power supply voltage: 3 V (batteries are installed in pairs)
Battery life: Up to 2 years
Installation method: Indoors
Operating temperature range: From -10°C to +40°C
Operating humidity: Up to 75%
Overall dimensions: 150 × 103 × 14 mm
Weight: 197 g
Service life: 10 years
Certification: Security Grade 2, Environmental Class II in conformity with the requirements of EN 50131-1, EN 50131-3, EN 50131-5-3
