100m WEBRO Domestic RG6 Brown PVC

Copper Clad Steel (CPR Class Eca)
*PRICE REDUCED* *SAVE -12.5%*

SKU: 441006E-BRN-100

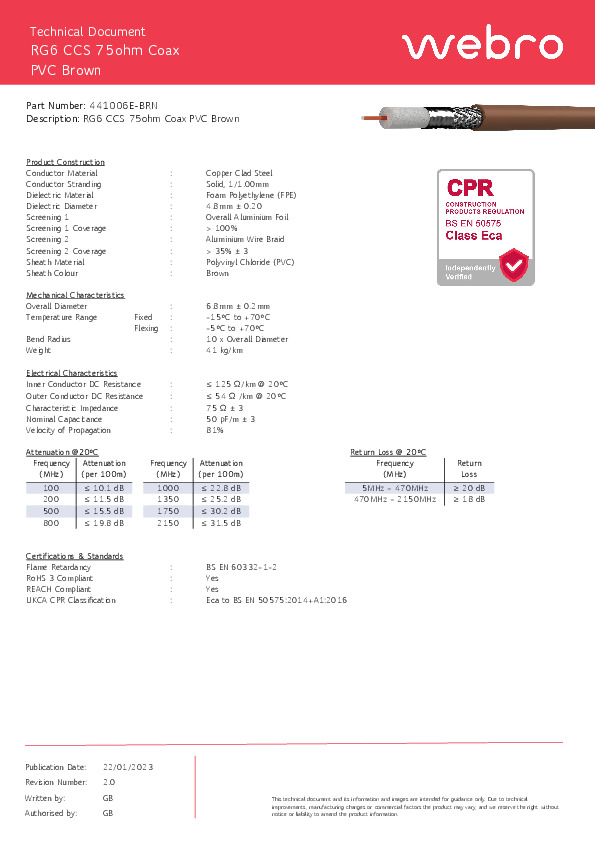

  Product Documents

100m WEBRO Domestic RG6 Brown PVC

Copper Clad Steel (CPR Class Eca)
*PRICE REDUCED* *SAVE -12.5%*


  • Double Screened Foil/Braid
  • Copper Coated Steel Inter-Conductor
  • Ideal for FM-DAB-UHF
  • Ideal for Satellite - (Loss subject to length of cable run)

Construction

  • Inner conductor: Copper Clad Steel
  • Dielectric: Foam PE
  • Foil: ALU/P
  • Braid: ALU
  • Sheath: PVC

Mechanical Specifications

  • Center Conductor: 1.02mm CCS
  • Dielectric: Foam PE
  • Diameter over Dielectric: 4.8mm
  • Shield: AL/P Foil
  • Braid: 0.12mm x 64 AL wire
  • Sheathing Material: PVC
  • Diameter over Sheath: 6.80mm x 13.90mm

Electrical Specifications

  • Impedance: 75 Ohm
  • Capacitance: 16.2 pF/ft
  • Velocity Ratio: 83%
  • DC Resistance Conductor: 28 Ohm/1000ft
  • DC Resistance Shield: 19.3 Ohm/1000ft

Attenuation (db/1000ft) at (Each Leg)

  • 1MHz: 2.60
  • 10MHz: 8.10
  • 50MHz: 17.9
  • 100MHz: 20.5
  • 200MHz: 28.3
  • 400 MHz: 40.5
  • 700 MHz: 56.0
  • 900 MHz: 62.3
  • 1000 MHz: 65.9
  • 1200 MHz: 75.0
  • 1450 MHz: 81.4
  • 1800 MHz: 90.0
  • 2200 MHz: 99.0

Return Loss

  • 1 – 862 MHz: >25
  • 862 – 2200MHz: > 20
