100m WEBRO Domestic RG6 Black PVC

Copper Clad Steel (CPR Class Eca)

SKU: 441006E-BLK-100

Supplier: Webro

100m WEBRO Domestic RG6 Black PVC

Copper Clad Steel (CPR Class Eca)


- Double Screened Foil/Braid
- Copper Coated Steel Inter-Conductor
- Ideal for FM-DAB-UHF
- Ideal for Satellite - (Loss subject to length of cable run)

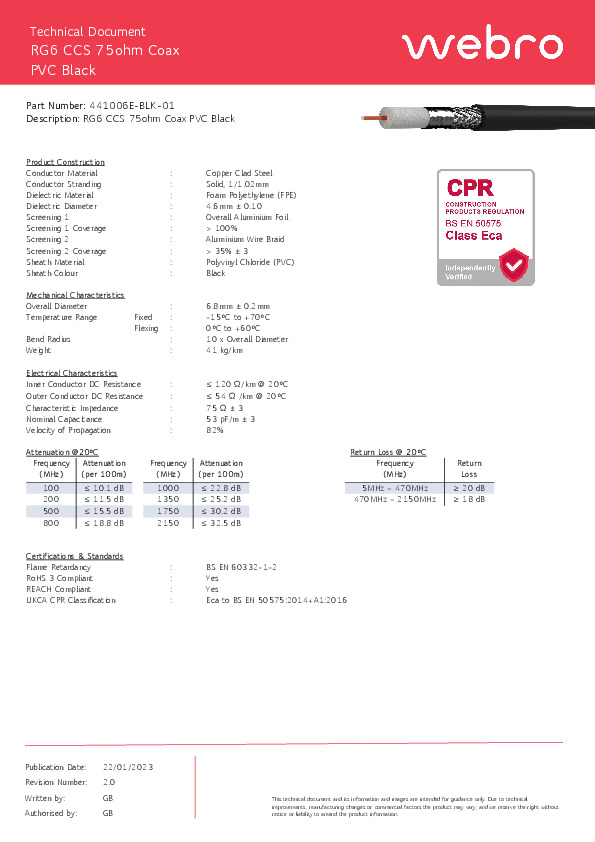

Construction

- Inner conductor: Copper Clad Steel
- Dielectric: Foam PE
- Foil: ALU/P
- Braid: ALU
- Sheath: PVC

Mechanical Specifications

- Center Conductor: 1.02mm CCS
- Dielectric: Foam PE
- Diameter over Dielectric: 4.8mm
- Shield: AL/P Foil
- Braid: 0.12mm x 64 AL wire
- Sheathing Material: PVC
- Diameter over Sheath: 6.80mm x 13.90mm

Electrical Specifications

- Impedance: 75 Ohm
- Capacitance: 16.2 pF/ft
- Velocity Ratio: 83%
- DC Resistance Conductor: 28 Ohm/1000ft
- DC Resistance Shield: 19.3 Ohm/1000ft

Attenuation (db/1000ft) at (Each Leg)

- 1MHz: 2.60
- 10MHz: 8.10
- 50MHz: 17.9
- 100MHz: 20.5
- 200MHz: 28.3
- 400 MHz: 40.5
- 700 MHz: 56.0
- 900 MHz: 62.3
- 1000 MHz: 65.9
- 1200 MHz: 75.0
- 1450 MHz: 81.4
- 1800 MHz: 90.0
- 2200 MHz: 99.0

Return Loss

- 1 – 862 MHz: >25
- 862 – 2200MHz: > 20
