100m TELEVES SK2003+ Black LSZH (Class A+)

TRIPLE Screen (CPR Class Dca)
(Copper Conductor & CCS Braid)
*Special Order NCNR - Price on Request*

SKU: 414002

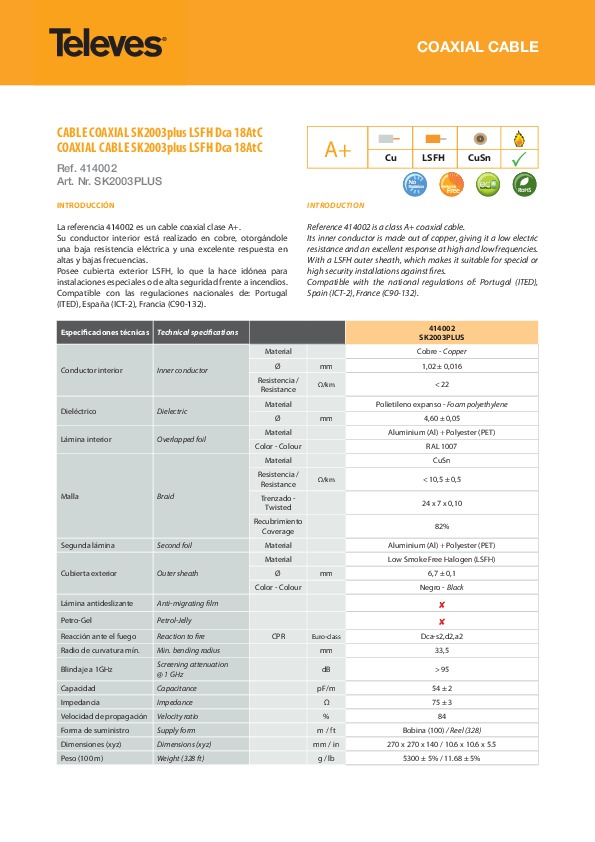

  Product Documents

100m TELEVES SK2003+ Black LSZH (Class A+)

TRIPLE Screen (CPR Class Dca)
(Copper Conductor & CCS Braid)
*Special Order NCNR - Price on Request*


SK2003plus Coaxial cable, 18 AtC
Dca Euroclass, A+ Class shielded

Coaxial cable with both conductors made of copper (Cu/Cu) and excellent braid coverage (82%). Triple shielded (TSH) cable, equipped with a second foil for extra shielded. An 18AtC cable with UV-resistant LSFH sheath.

HIGHLIGHTS

  • Copper conductors
  • Class A+ shielded
  • Dca Euroclass

MAIN FEATURES

  • External UV-resistant LSFH sheath, black colour
  • 75 Ohm characteristic impedance
  • Available in reels of different lengths

DISCOVER
Class A+ Trishield (TSH) coaxial cable

With three shielding layers (Trishield), this cables provide the highest immunity to interference thanks to its very high shielding. Recommended in cases of high electromagnetic noise levels.

They belong in EN 50117 standard Class A+, according to their structural properties:

  • For 5 MHz - 30 MHz => TI < 2.5 mΩ/m
  • For 5 MHz - 1000 MHz => SA > 95 dB
  • For 1000 MHz - 2000 MHz => SA > 85 dB
  • For 2000 MHz - 3000 MHz => SA > 75 dB

Where the transfer impedance (TI) defines how effective the shielding is at low frequencies, while the shielding attenuation (SA) defines it in the 30 MHz-to-3000 MHz range.

CXT-1 17 VAtC.A coaxial cable
Eca Euroclass

Coaxial cable with copper-clad steel inner conductor and aluminium braid (CCS/Al), and an excellent braid coverage (77%). A 17 VAtC.A cable with double shielded and PVC sheath.

HIGHLIGHTS

  • Copper-clad steel inner conductor and aluminium braid
  • Eca Euroclass

MAIN FEATURES

  • White-colour external PVC sheath
  • 75 Ohm characteristic impedance
  • Available in reels of different lengths

DISCOVER
Double-shielded Class B coaxial cable
They provide two shielding layers and belong in EN 50117 standard Class B, according to their structural properties:

  • For 5 MHz - 30 MHz => TI < 15 mΩ/m
  • For 5 MHz - 1000 MHz => SA > 75 dB
  • For 1000 MHz - 2000 MHz => SA > 65 dB
  • For 2000 MHz - 3000 MHz => SA > 55 dB

Where the transfer impedance (TI) defines how effective the shielding is at low frequencies, while the shielding attenuation (SA) defines it in the 30 MHz-to-3000 MHz range.

Type: SK2003plus
Standard: EN 50117-2-5
EuroClass: Dca
Class: A+

Inner conductor
Ø mm: 1,02
Material: CU
Res. Ohm/Km: <22

Dielectric
Ø mm: 4,6
Material: PEE

Overlapped foil: Aluminium + Polyester

Braid
Material: CuSn (98%Cu)
Dimensions (Ncx Nsx Ø): 24 x 7 x 0,10
Res. Ohm/Km: <11
Coverage %: 82

2-nd foil: Yes
Petrol-Jelly: No
Outer sheath Ø (m): 6,7 Material: LSHF, UV resistant
Minimum bending radius (mm): 33,5
Screening attenuation @ 1GHz (dB): >95
Capacitance (pF/m): 54
Impedance (Ohm): 75
Transfer impedance (5-30MHz) (mOhm/m): ≤2,5
Velocity ratio (%): 84

Attenuations (dB/m)
Frequency (MHz)
5: 0,02
47: 0,05
90: 0,06
200: 0,09
500: 0,14
800: 0,18
1000: 0,21
1350: 0,24
1750: 0,28
2050: 0,3
2300: 0,32
