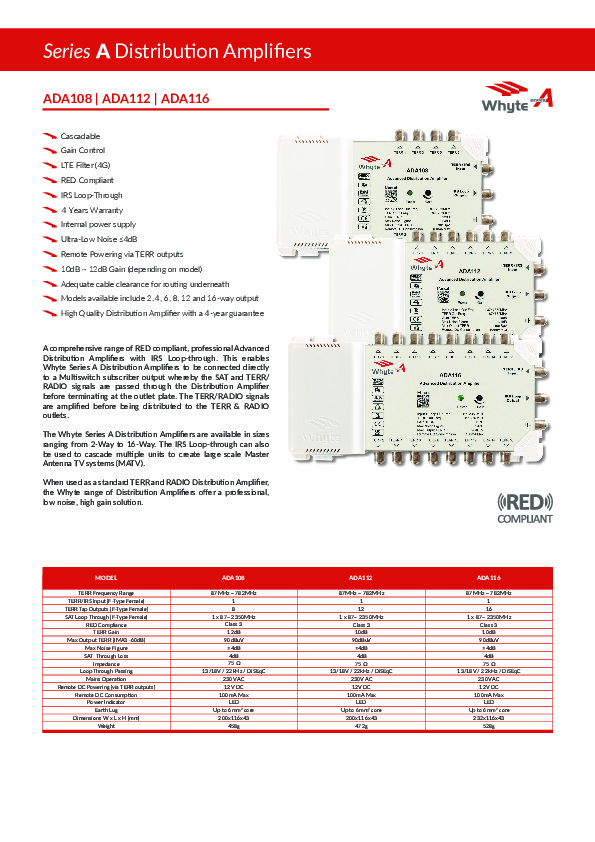

A comprehensive range of RED compliant, professional Advanced Distribution Amplifiers with IRS Loop-through. This enables Whyte Series A Distribution Amplifiers to be connected directly to a Multiswitch subscriber output whereby the SAT and TERR/RADIO signals are passed through the Distribution Amplifier before terminating at the outlet plate. The TERR/RADIO signals are amplified before being distributed to the TERR & RADIO outlets.
The Whyte Series A Distribution Amplifiers are available in sizes ranging from 2-Way to 16-Way. The IRS Loop-through can also be used to cascade multiple units to create large scale Master Antenna TV systems (MATV). When used as a standard TERR and RADIO Distribution Amplifier, the Whyte range of Distribution Amplifiers offer a professional, low noise, high gain solution.
Main Features:
- Cascadable
- LTE Filter (4G)
- Gain Control
- RED Compliant
- IRS Loop-Through
- Internal power supply
- Ultra-Low Noise ≤4dB
- Remote Powering via all outputs
- 10dB ~ 12dB Gain (depending on model)
- Adequate cable clearance for routing underneath
- Models available include 2, 4, 6, 8, 12 and 16-way output
- High Quality Distribution Amplifier with a 4-year guarantee
Specifications:
| TERR Frequency Range | 87MHz ~ 782MHz |
| TERR/IRS Input (F-Type Female) | 1 |
| TERR Tap Outputs (F-Type Female) | 12 |
| SAT Loop Through (F-Type Female) | 1 x 87~ 2350MHz |
| RED Compliance | Class 3 |
| TERR Gain | 12dB |
| Max Output TERR (IMA3 -60dB) | 90dBuV |
| Max Noise Figure | ≤4dB |
| SAT Through Loss | 4dB |
| Impedence | 75 Ω |
| Loop Through Passing | 13/18V / 22kHz / DiSEqC |
| Mains Operation | 230V AC |
| Remote DC Powering (via TERR outputs) | 12V DC |
| Remote DC Consumption | 100mA Max |
| Power Indicator | LED |
| Earth Lug | Up to 6mm2 core |
| Dimensions W x L x H (mm) | 200x116x43 |
| Weight | 472g |
