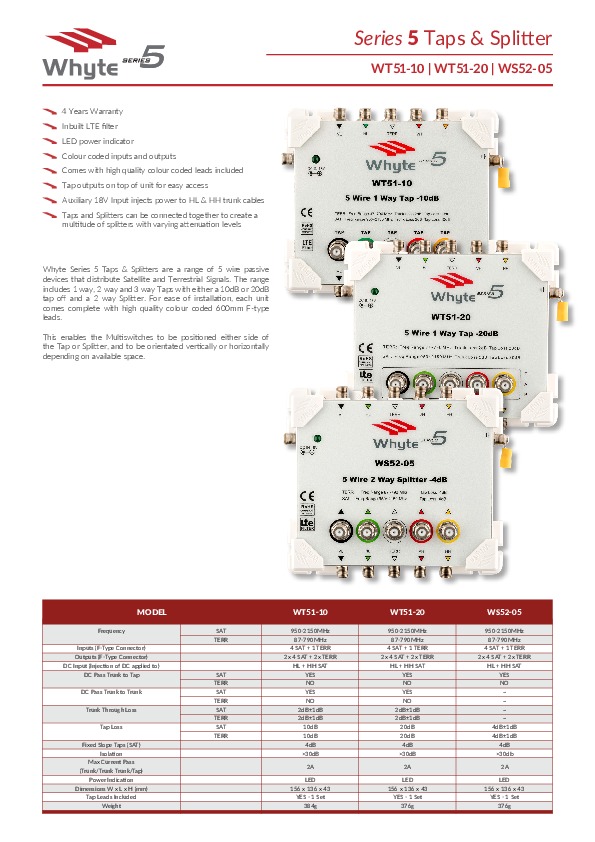

Whyte Series 5 Taps & Splitters are a range of 5 wire passive devices that distribute SAT and Terrestrial Signals. The range includes 1 way, 2 way and 3 way Taps with either a 10dB or 20dB tap off and a 2 way Splitter. For ease of installation, each Tap comes complete with a set of high quality colour coded 600mm F-type leads which enables the Multiswitches to be positioned either side of the Tap and to be orientated vertically or horizontally depending on available space.
Main Features:
- Inbuilt LTE filter
- LED power indicator
- Colour coded inputs and outputs
- Tap outputs on top of unit for easy access
- Whyte Taps, Splitters and Multiswitches can be used to configure Integrated Reception Systems (IRS) to suit your application
Specifications:
| Frequency: | SAT: 950-2150MHz TERR: 87-790MHz |
| Inputs (F-Type Connector): | 4 SAT + 1 TERR |
| Outputs (F-Type Connector): | 3× 4 SAT 3× 1 TERR |
| DC Input (Injection of DC applied to): | SAT Trunks HL + HH |
| DC Pass Trunk To Tap: | SAT: All TERR: No |
| Splitter Loss: | SAT: 4dB±1dB TERR: 4dB±1dB |
| Fixed Slope Tap (SAT): | 4dB |
| Isolation: | >30dB |
| Max Current Pass (Trunk/Split): | 2A |
| Power Indication: | LED |
| Dimensions (mm): | 156 x 136 x 43 |
| Weight: | 376g |
