VISION EV5-524 Multiswitch 5x24 EVO

5 In 24 Out c/w Output Earth Bars Only

SKU: 118564

Supplier: Vision

Product Documents

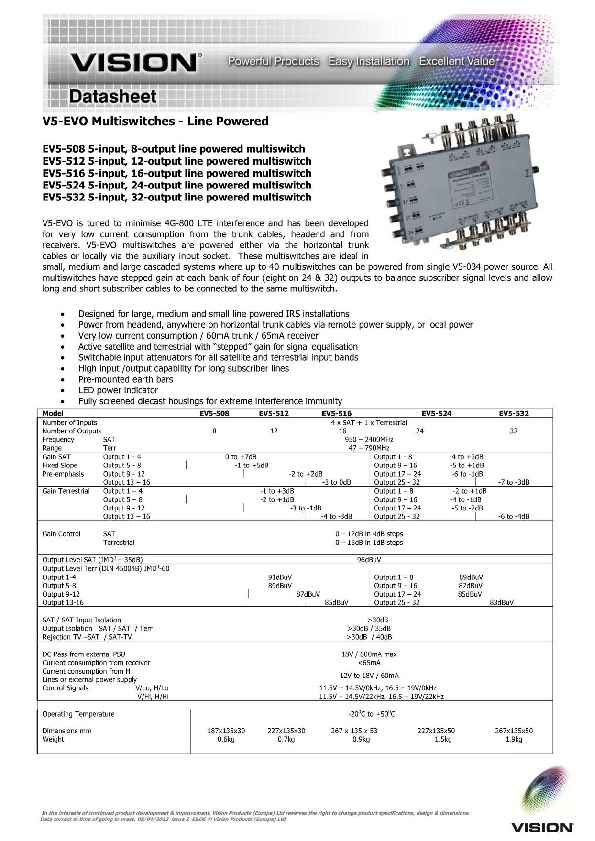

PDF1

VISION EV5-524 Multiswitch 5x24 EVO

5 In 24 Out c/w Output Earth Bars Only


The Vision EV5-524 is tuned to minimise 4G-800 LTE interference and has been developed for very low current consumption from the trunk cables, headend and from receivers.
V5-EVO multiswitches are powered either via the horizontal trunk cables or locally via the auxiliary input socket.
These multiswitches are ideal in small, medium and large cascaded systems where up to 40 multiswitches can be powered from single V5-034 power source.
All multiswitches have stepped gain at each bank of eight outputs to balance subscriber signal levels and allow long and short subscriber cables to be connected to the same multiswitch.
Number of Inputs: 4 x SAT + 1 x Terrestrial
Number of Outputs: 24
Frequency Range SAT: 950 - 2400MHz
Frequency Range Terr: 47 - 790MHz
Gain SAT 950 / 2400MHz Fixed Slope Pre-emphasis: Output 1 to 8: -4 to +3dB, Output 9 to 16: -5 to +1dB, Output 17 to 24: -6 to -1dB
Gain Terrestrial 40 / 862MHz Fixed Slope Pre-emphasis: Output 1 to 8: -2 to +1dB, Output 9 to 16: -4 to -1dB, Output 17 to 24: -5 to -2db
Gain Control SAT: 0 - 12dB in 4dB steps
Gain Control Terr: 0 - 15dB in 1dB steps
Output Level SAT (IMD³ - 35dB): 96dBuV
Output Level (DIN 45004B): Output 1 to 8: 89dBuV, Output 9 to 16: 87dBuV, Output 17 to 24: 85dBuV
SAT / SAT Input Isolation: >30dB
SAT / SAT / Terr Output Isolation: >30dB / 35dB
Rejection TV -SAT / SAT-TV: >30dB / 40dB
DC Pass from external PSU: 18V / 600mA max
Current consumption from receiver: <65mA
Current consumption from H Lines or external power supply: 12V to 18V / 60mA
Control Signals V/Lo, H/Lo: 11.5V - 14.5V/0kHz, 16.5 - 19V/0kHz
Control Signals V/Hi, H/Hi: 11.5V - 14.5V/22kHz, 16.5 - 19V/22kHz
Dimensions mm: 227x135x50
Weight: 1.5kg
