UBIQUITI UniFi Switch PRO 24

Layer 3 Managed (24) Gigabit RJ45 Ports
(2) 10G SFP+ Ports SmartPower RPS DC Input

SKU: USW-PRO-24

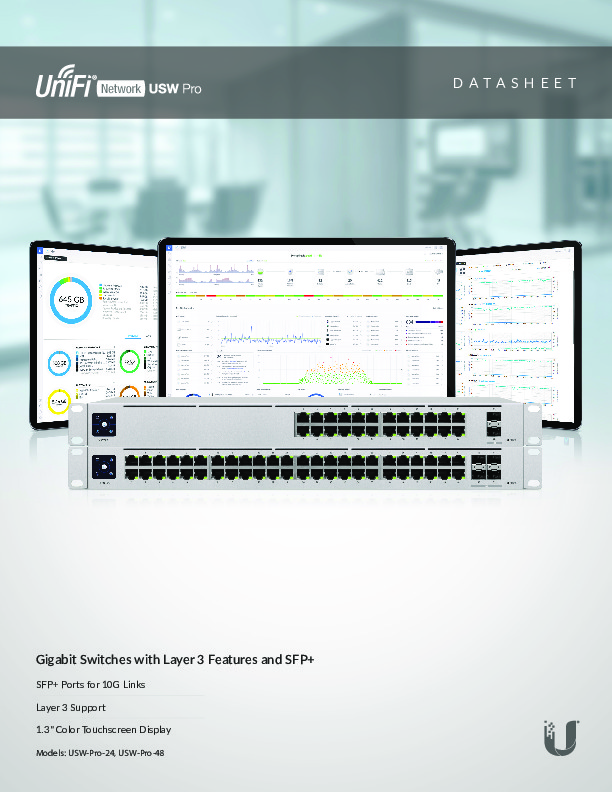

  Product Documents

UBIQUITI UniFi Switch PRO 24

Layer 3 Managed (24) Gigabit RJ45 Ports
(2) 10G SFP+ Ports SmartPower RPS DC Input


The Ubiquiti UniFi Switch PRO 24 - USW-PRO-24 is a fully managed Layer 3 switch with (24) Gigabit Ethernet. Two 10G SFP+ up-links offer link aggregation for higher network capacity and increased availability along with distribution. The USW-Pro-24 features a extensive set of Layer 2 capabilities and integrates Layer 3 functionality such as inter-VLAN routing, static routing, and a DHCP server.The UniFi Switch Pro 24 is an ideal access layer switch for any UniFi solution it combines near-silent running with UniFi SmartPower RPS functionality for power redundancy. The UniFi Network Controller and UniFi Network mobile app allow admins to configure and monitor virtually all of the switch features in an intuitive graphical user interface from anywhere.

Features:

  • (24) Gigabit RJ45 ports
  • (2) 10G SFP+ ports
  • Layer 2 and Layer 3 features
  • UniFi SmartPower RPS DC input
  • Near-silent cooling
  • 1.3" touchscreen display
  • Managed by UniFi Network Controller(version: 5.10.5 or higher)

Specifications:

  • Dimensions: 442.4 x 285.4 x 43.7 mm (17.42 x 11.24 x 1.72")
  • Weight: 3.50 kg (7.72 lb)
  • With Brackets: 3.59 kg (7.92 lb)
  • Interfaces: Networking: (24) 10/100/1000 RJ45 Ports, (2) 1/10G SFP+ Ethernet Ports
  • Management: Ethernet In-Band
  • Total Non-Blocking Throughtput: 44 Gbps
  • Switching Capacity: 88 Gbps
  • Forwarding Rate: 65.472 Mpps
  • Power Method: Universal Input: 100-240VAC, 50-60Hz
  • Power Supply: AC/DC, Internal, 36W
  • Voltage Range: 100 to 240VAC
  • Max. Power Consumption: 30W
  • LEDs: RJ45 Data Ports: Speed/Link/Activity
  • SFP Data Ports: Link/Activity
  • ESD/EMP Protection: Air: ± 16 kV, Contact: ± 12 kV
  • Shock and Vibration: ETSI300-019-1.4 Standard
  • Operating Temperature: -5 to 45° C (23 to 113° F)
  • Operating Humidity: 10 to 90% Noncondensing
  • Certifications: CE, FCC, IC
