UBIQUITI EdgeSwitch 24 Port PoE 500W

Layer 3 Managed Gigabit 24/48V
*Special Order! NCNR - Check Lead Time*

SKU: ES-24-500W

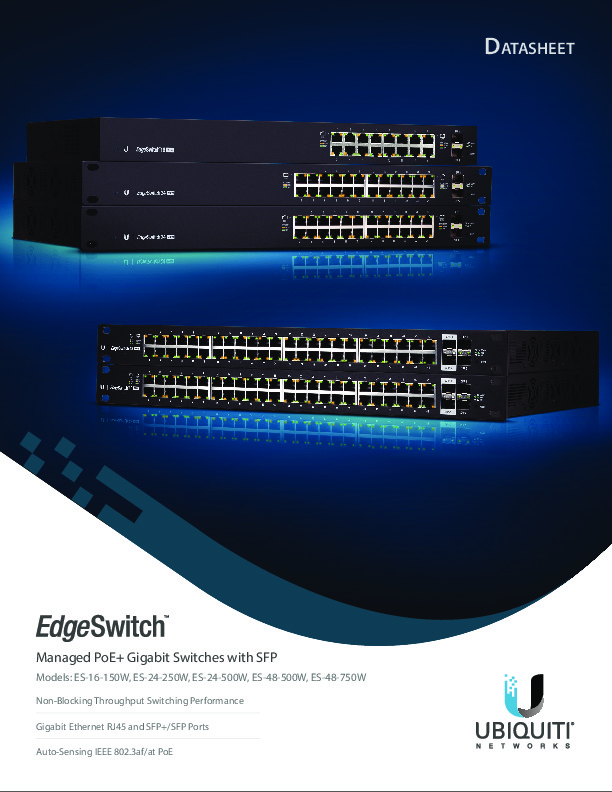

  Product Documents

UBIQUITI EdgeSwitch 24 Port PoE 500W

Layer 3 Managed Gigabit 24/48V
*Special Order! NCNR - Check Lead Time*


Using the Edge OS Platform this Layer 3 Managed Switch does do Routing so is more for tech savvy customers requiring higher end enterprise network applications. For just a Managed switch please refer to the new UniFi range of Layer 2 Managed switches.

The Ubiquiti EdgeSwitch 24 500W is a powerful enterprise switch that delivers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.

Key Features:

  • Total Non-Blocking Throughput - 26 Gbps
  • Gigabit RJ45 Ports - 24
  • SFP+ Ports - N/A
  • SFP Ports - 2
  • Max. Power Consumption - 500W
  • Supports POE+ IEEE 802.3at/af and 24V Passive PoE
  • Rackmountable
  • Build and expand your network with the Ubiquiti EdgeSwitch 24 500W, part of the EdgeMAX line of products. The EdgeSwitch is a fully managed, PoE+ Gigabit switch, delivering robust performance and intelligent switching for growing networks. The EdgeSwitch offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.
  • Dimensions 485.04 x 44.45 x 285.6 mm (19.1 x 1.75 x 11.24")
  • Weight 3.7 kg (8.16 lb)
  • Total Non-Blocking Throughput 26 Gbps
  • Max. Power Consumption - 500W
  • Power Method 100-240VAC/50-60 Hz, Universal Input
  • Power Supply, ES-24-500W, AC/DC, Internal, 500W DC
  • LEDs Per Port
  • RJ45 Data Ports
  • SFP Data Ports
  • PoE, Speed/Link/Activity
  • Speed/Link/Activity
  • Networking Interfaces (24) 10/100/1000 Mbps RJ45 Ethernet Ports
  • (2) 1 Gbps SFP Ethernet Ports
  • Management Interface Ethernet In/Out Band
  • Certifications CE, FCC, IC
  • Rackmount Yes, 1U High
  • ESD/EMP Protection Air: ±24 kV, Contact: ±24 kV
  • Operating Temperature -5 to 40° C (23 to 104° F)
  • Operating Humidity 5 to 95% Noncondensing
  • Shock and Vibration ETSI300-019-1.4 Standard
  • PoE Per Port
  • PoE Interfaces POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
  • 24VDC Passive PoE (Pins 4, 5+; 7, 8-)
  • Max. PoE+ Wattage per Port by PSE 34.2W
  • Voltage Range 802.3at Mode 50–57V
  • Max. Passive PoE Wattage per Port 17W
  • 24V Passive PoE Voltage Range 20-27V
