UBIQUITI AmpliFi HD Mesh Point Only

Extra point on residential wireless system
(Requires Router: AFI-R-UK or AFI-HD-UK)

SKU: AFI-P-HD-UK

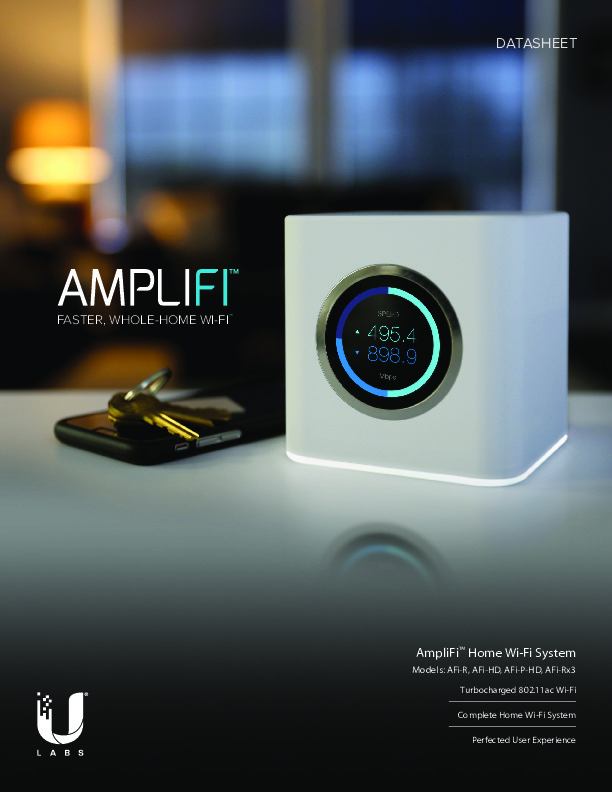

Product Documents

PDF1

UBIQUITI AmpliFi HD Mesh Point Only

Extra point on residential wireless system
(Requires Router: AFI-R-UK or AFI-HD-UK)


The Ubiquiti AmpliFi HD Mesh Point is part of Ubiquiti's residential wireless range.

The AFI-P-HD-UK is designed to pair with an AmpliFi Router, to expand the coverage of an AmpliFi network, or with an existing router to create a powerful wireless mesh. The HD Mesh Points also include LED signal strength indicators and can be added around your house as needed to eliminate any dead spots in wireless coverage.

Use the AMPLIFI mobile app for instant set-up and easy management; it is available from the App Store or Google Play.

AmpliFi Specifications:
Max TX Power: 26 dBm
Radios: 6
Chains: 18
Speed: 5.25 Gbps

Router Specifications:
Dimensions: 99.5 x 97.8 x 99.6 mm (3.91 x 3.85 x 3.92") 410 g (14.46 oz)
Max. TX Power: 26 dBm
Radios: 2
MIMO Chains: 6
Speed: 1750 Mbps
Networking Interface: Wi-Fi/Gigabit Ethernet (1) WAN, (4) LAN
Max. Power Consumption: 11W
ESD/EMP Protection: +- 24kV Air/Contact
Buttons: Reset
Antennas: (1) Dual-Band Antenna, Tri-Polarity
Display: 40.6 mm (1.6") Diagonal, 240 x 240, 212 ppi, G+F Touch, Full Color
Wi-Fi Standards: 802.11ac
Power Save: Supported
Wireless Security: WPA2-PSK AES/TKIP
Operating Temperature: -10 to 55 Deg C
Operating Humidity: 5 to 95% Noncondensing
Certifications: FCC / CE / IC

MeshPoint Specifications:
Dimensions: 243.83 x 54 x 57.75 (9.60 x 2.13 x 2.27") Weight 224 g (7.90 oz)
Max. TX Power: 26 dBm
Radios: 2
MIMO Chains: 6
Speed: 1750 Mbps
ESD/EMP Protection: +- 24kV Air/Contact
Buttons: Reset
Antennas: (1) Dual-Band Antenna, Tri-Polarity
Wi-Fi Standards: 802.11ac
Power Save: Supported
Wireless Security: WPA2-PSK AES/TKIP
Operating Temperature: -10 to 55° C
Operating Humidity: 5 to 95% Noncondensing
Certifications: FCC / CE / IC

Supported Data Rates (Mbps):
802.11ac: 13 Mbps to 1300 Mbps (MCS0 - MCS9, VHT 20/40/80)
802.11n: 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
