UBIQUITI AmpliFi HD c/w 2 Extra Points KIT

Complete residential wireless system
add points to extend cover (AFI-P-HD-UK)

SKU: AFI-HD-UK

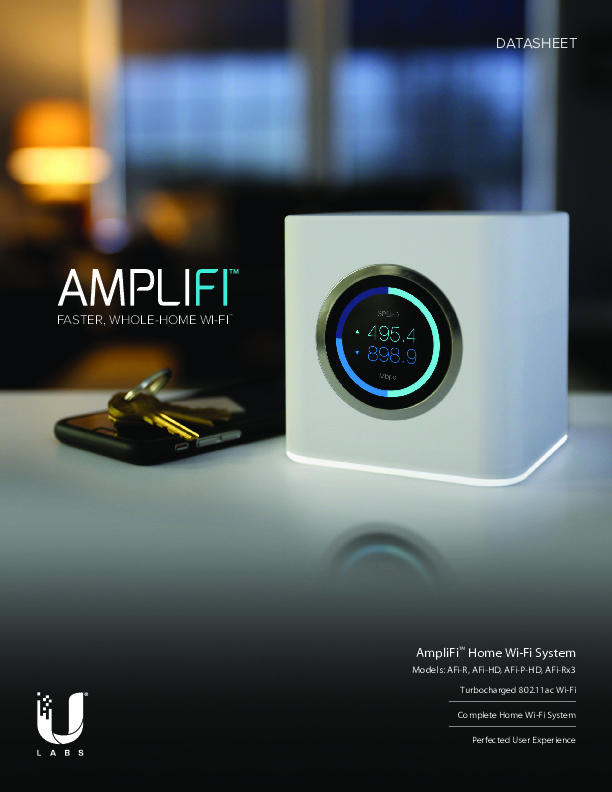

Product Documents

PDF1

UBIQUITI AmpliFi HD c/w 2 Extra Points KIT

Complete residential wireless system
add points to extend cover (AFI-P-HD-UK)


The Ubiquiti AmpliFi HD Kit is part of Ubiquiti's brand new residential mesh wireless range.

It is designed to provide maximum Wi-Fi coverage throughout your home and comes with two pre-configured AmpliFi HD Mesh Points for plug-and-play set-up. The router includes a smart LCD screen so you can quickly check your network metrics including current and total throughput. The HD Mesh Points also include LED signal strength indicators.

Use the AMPLIFI mobile app for instant set-up and easy management; it is available from the App Store or Google Play.

Please note: The HD Mesh Points included in this kit are hardware locked to the Router and will not work with any other wireless system.

AmpliFi Specifications:
Max TX Power: 26 dBm
Radios: 6
Chains: 18
Speed: 5.25 Gbps
Router Specifications:
Dimensions: 99.5 x 97.8 x 99.6 mm (3.91 x 3.85 x 3.92") 410 g (14.46 oz)
Max. TX Power: 26 dBm
Radios: 2
MIMO Chains: 6
Speed: 1750 Mbps
Networking Interface: Wi-Fi/Gigabit Ethernet (1) WAN, (4) LAN
Max. Power Consumption: 11W
ESD/EMP Protection: +- 24kV Air/Contact
Buttons: Reset
Antennas: (1) Dual-Band Antenna, Tri-Polarity
Display: 40.6 mm (1.6") Diagonal, 240 x 240, 212 ppi, G+F Touch, Full Color
Wi-Fi Standards: 802.11ac
Power Save: Supported
Wireless Security: WPA2-PSK AES/TKIP
Operating Temperature: -10 to 55 Deg C
Operating Humidity: 5 to 95% Noncondensing
Certifications: FCC / CE / IC
MeshPoint Specifications:
Dimensions: 243.83 x 54 x 57.75 (9.60 x 2.13 x 2.27") Weight 224 g (7.90 oz)
Max. TX Power: 26 dBm
Radios: 2
MIMO Chains: 6
Speed: 1750 Mbps
ESD/EMP Protection: +- 24kV Air/Contact
Buttons: Reset
Antennas: (1) Dual-Band Antenna, Tri-Polarity
Wi-Fi Standards: 802.11ac
Power Save: Supported
Wireless Security: WPA2-PSK AES/TKIP
Operating Temperature: -10 to 55° C
Operating Humidity: 5 to 95% Noncondensing
Certifications: FCC / CE / IC

Supported Data Rates (Mbps):
802.11ac: 13 Mbps to 1300 Mbps (MCS0 - MCS9, VHT 20/40/80)
802.11n: 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
