UBIQUITI AirMAX LiteBeam AC Gen2

Network Bridge Antenna
(Use UBNT UMobile App for easy deployment)
*Special Order! NCNR - Check Lead Time*

SKU: LBE-5AC-GEN2

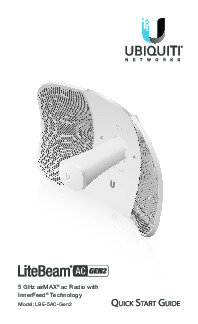

  Product Documents

UBIQUITI AirMAX LiteBeam AC Gen2

Network Bridge Antenna
(Use UBNT UMobile App for easy deployment)
*Special Order! NCNR - Check Lead Time*


Introducing the latest generation of airMAX CPE, the LiteBeam 5AC Gen 2, with dedicated Wi-Fi management. The LBE-5AC-GEN2 is the latest product in the LiteBeam range and features improved noise immunity for crowded RF environments as well as a 2.4GHz wireless management interface to make configuration even easier. The LiteBeam 5AC Gen 2 comes with airOS 8, offering many improved and added features over the previous operating system. Such as; airMAX Mixed Mode, channel width customisation, and the strongest WPA2 security as well as a host of usability enhancements including; airMagic channel selection tool, a redesigned UI, HTML 5 technology, and much more.

Integrated Design - Ubiquitis InnerFeed technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses. Featuring high performance and innovative mechanical design, the LiteBeam 5AC Gen 2 is versatile and cost-effective to deploy.

UMobile App - The LiteBeam 5AC Gen 2 integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

Full Adjustment Flexibility - The LiteBeam 5AC features a two-mount system that provides adjustment flexibility along both axes for versatile mounting options. The mounting system, coupled with the built-in bubble level, enables quick and easy alignment.

Improved Mounting and Surge Protection - Featuring enhanced protection against power surges, the LiteBeam 5AC Gen 2 offers a more robust mount with separate azimuth and elevation adjustments.

Specifications:

Dimensions: 358 x 271.95 x 272.5 mm
Weight: 800 g
Max. Power Consumption: 7W
Power Supply: 24V, 0.3A Gigabit PoE Adapter (Included)
Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
Supported Voltage Range: 24V +- 10 percent.
Processor Specs: MIPS 74Kc
Memory: 64 MB DDR2
Gain: 23 dBi
Networking Interface: (1) 10/100/1000 Ethernet Port
Mounting: Pole-Mounting Kit (Included)
Wind Loading: 275 N @ 200 km/h (61.8 lbf @ 125 mph)
Wind Survivability: 125 mph
Operating Temperature: -40 to 70C
Operating Humidity: 5 to 95 percent Non-condensing
Certifications: CE, FCC, IC
