TRIAX F TX45 Log Periodic K LTE700 (Loose)

14 Element c/w Rotating F Connection

SKU: 108189

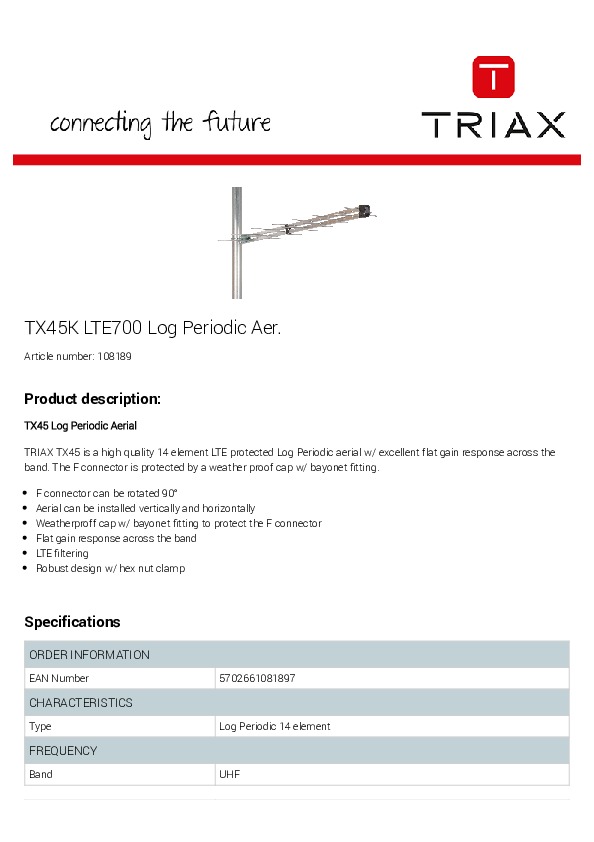

  Product Documents

TRIAX F TX45 Log Periodic K LTE700 (Loose)

14 Element c/w Rotating F Connection


The TRIAX TX45 is a high quality 14 element LTE protected Log Periodic aerial w/ excellent flat gain response across the band. The F connector is protected by a weather proof cap w/ bayonet fitting.

  • F connector can be rotated 90°
  • Aerial can be installed vertically and horizontally
  • Weatherproff cap w/ bayonet fitting to protect the F connector
  • Flat gain response across the band
  • LTE filtering
  • Robust design w/ hex nut clamp

FREQUENCY
Band: UHF
Channels: 21...48
Frequency range UHF: 470...694 MHz
LTE protection: @ 700Mhz

GAIN
Gain: 10...12 dBi
Gain @ 474 MHz (Ch. 21): 10 dBi
Gain @ 602 MHz (Ch. 37): 11.0 dBi
Gain @ 694 MHz (Ch. 48): 12.0 dBi

ELECTRICAL
Front to back ratio - horizontal: 12...17 dB
Impedance: 75 Ω

MECHANICAL
Elements: 14
Beamwidth horizontal: 35...45 °
Beamwidth vertical: 30...40 °
Bracketry: Mast bracket - rear
Main material: Aluminium
Product Length: 1040 mm
Product Width: 335 mm
Product Height: 50 mm
Colour: Aluminium
