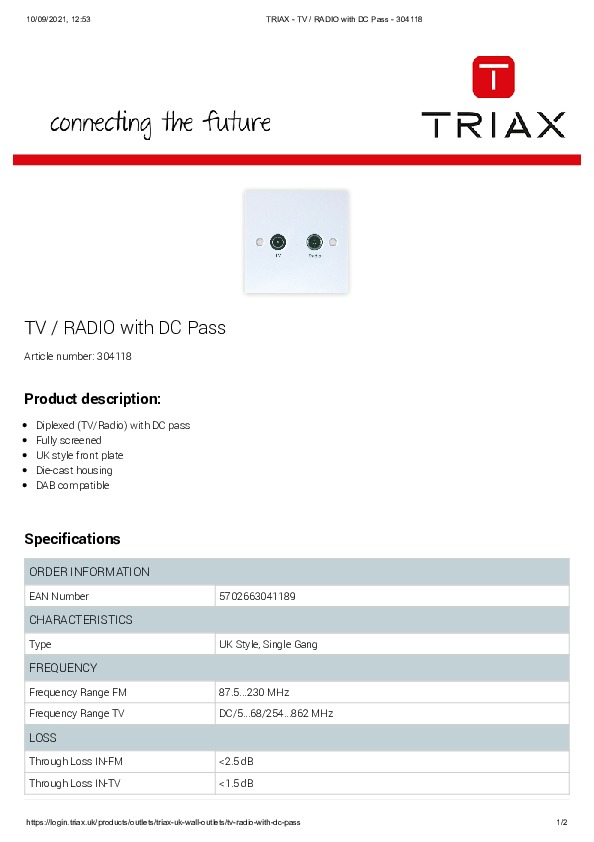

TV / RADIO with DC Pass
Main features:
- Diplexed (2 way) with DC Pass
- Fully Screened
- UK style front plate
- Die-cast housing
- DAB compatible
- Will fit standard 25mm flush mounting box
Characteristics
Type: UK Style, Single Gang
Frequency
Frequency Range FM: 87.5...230 MHz
Frequency Range TV: DC/5...68/254...862 MHz
Loss
Through Loss IN-FM: <2.5 dB
Through Loss IN-TV: <1.5 dB
Operational
DC Passthrough TV: Yes
Connectors
Connector FM: IEC-female
Connector IN-OUT : pring Clamp Termination
Connector TV: IEC-male
Mechanical
Product Depth: 35 mm
Net Weight: 0,134 kg
Remarks: Screened Die-Cast housing.
Product Width: 86 mm
Product Height: 86 mm
Colour: White
Main material: Polycarbonate
