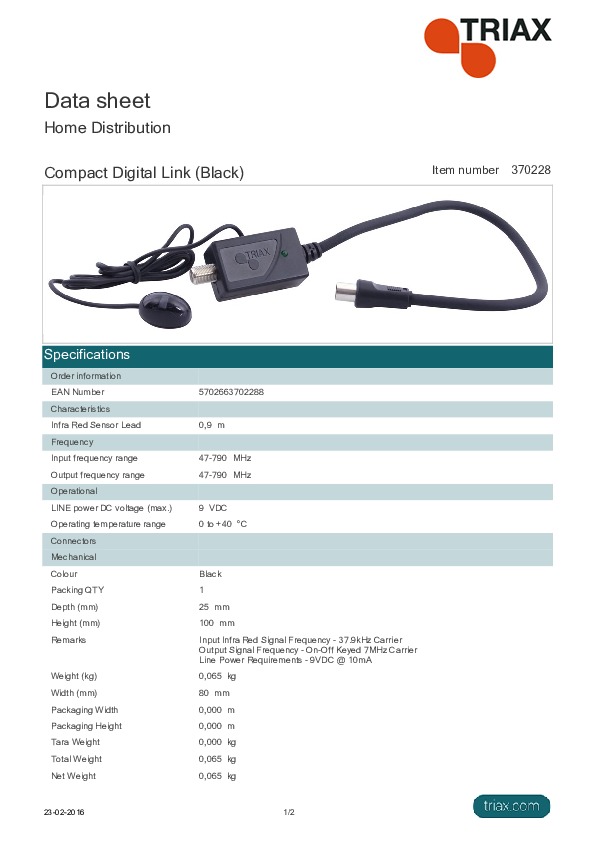

The Triax Digital Link enables control of your SKY STB receiver whilst viewing in other rooms around the home.
It is compatible with UK digital satellite receivers with an output marked RF-OUT 2 or used in conjunction with the Triax Link (stock code 370419) where no RF-OUT 2 is available.
Main features:
- Compact design ideal for LCD and plasma TV's
- Adhesive base for flexible installation
- Easy to install
- F Connector
- Discreet lens cover
Characteristics
Infra Red Sensor lead: 0.9m
Frequency
Input frequency range: 47-790 MHz
Output frequency range: 47-790 MHz
Operational
LINE power DC voltage (max.): 9 VDC
Operating temperature range: 0 to +40 °C
Connectors
Connector Type: F-female / IEC-male
Mechanical
Weight (kg): 0.065 kg
Width (mm): 80 mm
Depth (mm): 25 mm
Height (mm): 100 mm
Colour: Black
Remarks: Input Infra Red Signal Frequency - 37.9kHz Carrier Output Signal Frequency - On-Off Keyed 7MHz Carrier Line Power Requirements - 9VDC @ 10mA
