TP-LINK Wi-Fi 6 1775Mbps Ceiling Mount AP

Wireless Access Point 1201 + 574
High Density Application
5 Year Warranty

SKU: EAP620 HD

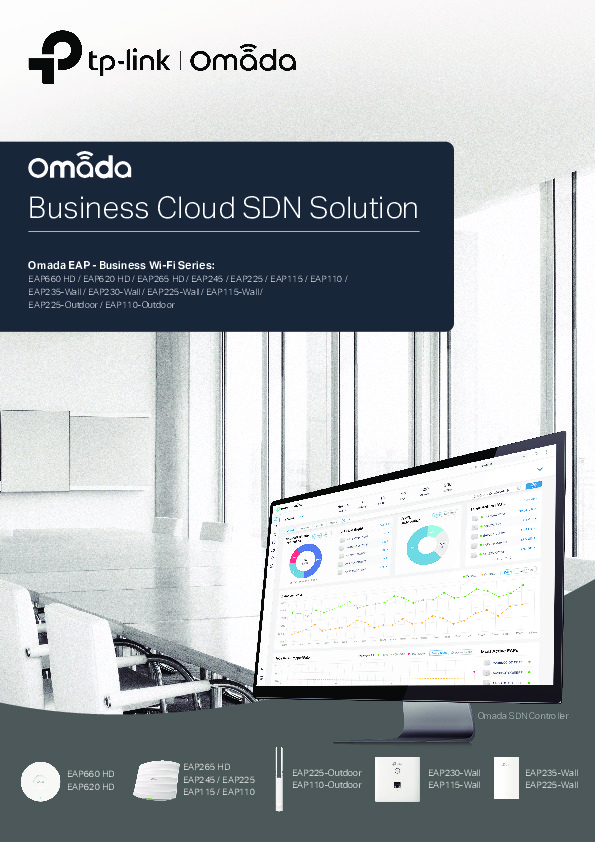

  Product Documents

TP-LINK Wi-Fi 6 1775Mbps Ceiling Mount AP

Wireless Access Point 1201 + 574
High Density Application
5 Year Warranty


*The warranty period is a 'Limited Lifetime' warranty which is 5 years from when the product is superseded by a newer model.

AX1800 Wireless Dual Band Ceiling Mount Access Point

  • Ultra-Fast Wi-Fi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds. (*1)
  • High-Density Connectivity: 4 x increased capacity to connect more devices simultaneously. (*2)
  • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralised Cloud Management, and Intelligent Monitoring. (*3)
  • Centralised Management: Cloud access and Omada app for ultra convenience and easy management.
  • Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations. (*4)
  • PoE+ Support: Supports Power over Ethernet (802.3at) for convenient deployment and installation.
  • Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.

(*1) Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.
(*2) 4 x Increased Capacity refers to increase in median throughput under dense environment compared to standard 4×4 11ac access point.
(*3) Zero-Touch Provisioning requires the use of Omada Cloud-Based Controller.
(*4) Seamless Roaming requires that clients need to support 802.11k/v and may require additional set up. Performance may vary depending on the client device.

HARDWARE FEATURES
Interface: 1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
Button: Reset
Power Supply: 802.3at PoE / 12 V DC
Power Consumption: EU: 12 W / US: 13.5 W
Dimensions ( W x D x H ): 9.6 × 9.6 × 2.5 in (243 × 243 × 64 mm)
Antenna Type: Internal Omni / 2.4 GHz: 2× 4 dBi / 5 GHz: 2× 5 dBi
Mounting: Ceiling /Wall Mounting (Kits included)

WIRELESS FEATURES
Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
Frequency: 2.4 GHz and 5 GHz
Signal Rate: 5 GHz: Up to 1201 Mbps / 2.4 GHz: Up to 574 Mbps
Wireless Functions:

  • 1024-QAM
  • 4× Longer OFDM Symbol
  • OFDMA
  • Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
  • Enable/Disable Wireless Radio
  • Automatic Channel Assignment
  • Transmit Power Control (Adjust Transmit Power on dBm)
  • QoS(WMM)
  • MU-MIMO
  • Seamless Roaming
  • Band Steering
  • Load Balance
  • Airtime Fairness
  • Beamforming
  • Rate Limit
  • Reboot Schedule
  • Wireless Schedule
  • Wireless Statistics based on SSID/AP/Client

Wireless Security:

  • Captive Portal Authentication
  • Access Control
  • Wireless Mac Address Filtering
  • Wireless Isolation Between Clients
  • SSID to VLAN Mapping
  • Rogue AP Detection
  • 802.1X Support
  • WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Transmission Power:

  • CE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, EIRP)
  • FCC: <25 dBm (2.4 GHz) <25 dBm (5 GHz)

MANAGEMENT
Omada App: Yes
Centralised Management: Omada Cloud-Based Controller / Omada Hardware Controller (OC300) / Omada Hardware Controller (OC200) / Omada Software Controller
Cloud Access: Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Email Alerts: Yes
LED ON/OFF Control: Yes
Management MAC Access Control: Yes
SNMP: v1, v2c, v3
System Logging Local/Remote Syslog: Local/Remote Syslog
SSH: Yes
Web-based Management: HTTP/HTTPS
L3 Management: Yes
Multi-site Management: Yes
Management VLAN: Yes

OTHERS
Certification: CE, FCC, RoHS
Package Contents: EAP620 HD / Power Adapter / Ceiling/Wall Mounting Kits / Installation Guide
System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux
Environment:

  • Operating Temperature: 0–40 ℃ (32–104 ℉)
  • Storage Temperature: -40–70 ℃ (-40–158 ℉)
  • Operating Humidity: 10–90% RH non-condensing
  • Storage Humidity: 5–90% RH non-condensing
