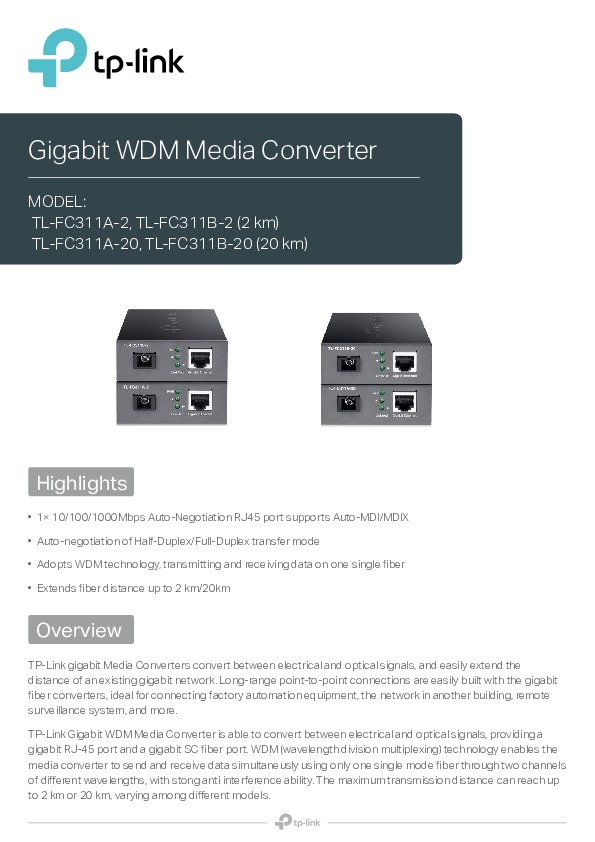

TL-FC311B-2 is a gigabit media converter, providing a gigabit RJ-45 port and a gigabit SC/UPC fibre port, which can convert between electrical and optical signals. And long-distance data transmission through optical fibre can be applied to commercial scenarios such as park security monitoring and wireless networking.
Main features:
Type: WDM Media Converter
Enclosure Type: External
Basic Functions: Auto-negotiation of Half-Duplex/Full-Duplex transfer mode / Transmitting and receiving data on one single fibre 9/125 um single-mode fibre (up to 2 km) / Single-mode Fibre / UTP category 5, 5e cable (maximum 100m)
Ports: 1 x Gigabit SC/UPC Fibre Port / 1 x 10/100/1000 Mbps RJ45 Port (Auto MDI/MDIX)
Standards and Protocols: IEEE 802.3i, 802.3u, 802.3ab, 802.3z
Wave Length: 1310nm Tx/1550nm Rx
Transmission Distance: 2km
LED Indicators: PWR, Link/Act
Dimensions: (WxDxH)94.5 x 73.0 x 27.0 mm
Power Supply: External Power Adapter: 5 V/0.6 A
Environment (C): Operating Temperature: 0C to 50C (32F to 122F) / Storage Temperature: -40C to 70C (-40F to 158F) / Operating Humidity: 10% to 90% RH non-condensing / Storage Humidity: 5% to 90% RH non-condensing
