PLATINUM ToneMaster™ ToneSeeker™ Generator

Professional Tone & Probe Kit
c/w Alligator Clips + Belt Pouch
*Special Order! NCNR - Check Lead Time*

SKU: TG210K1

  Product Documents

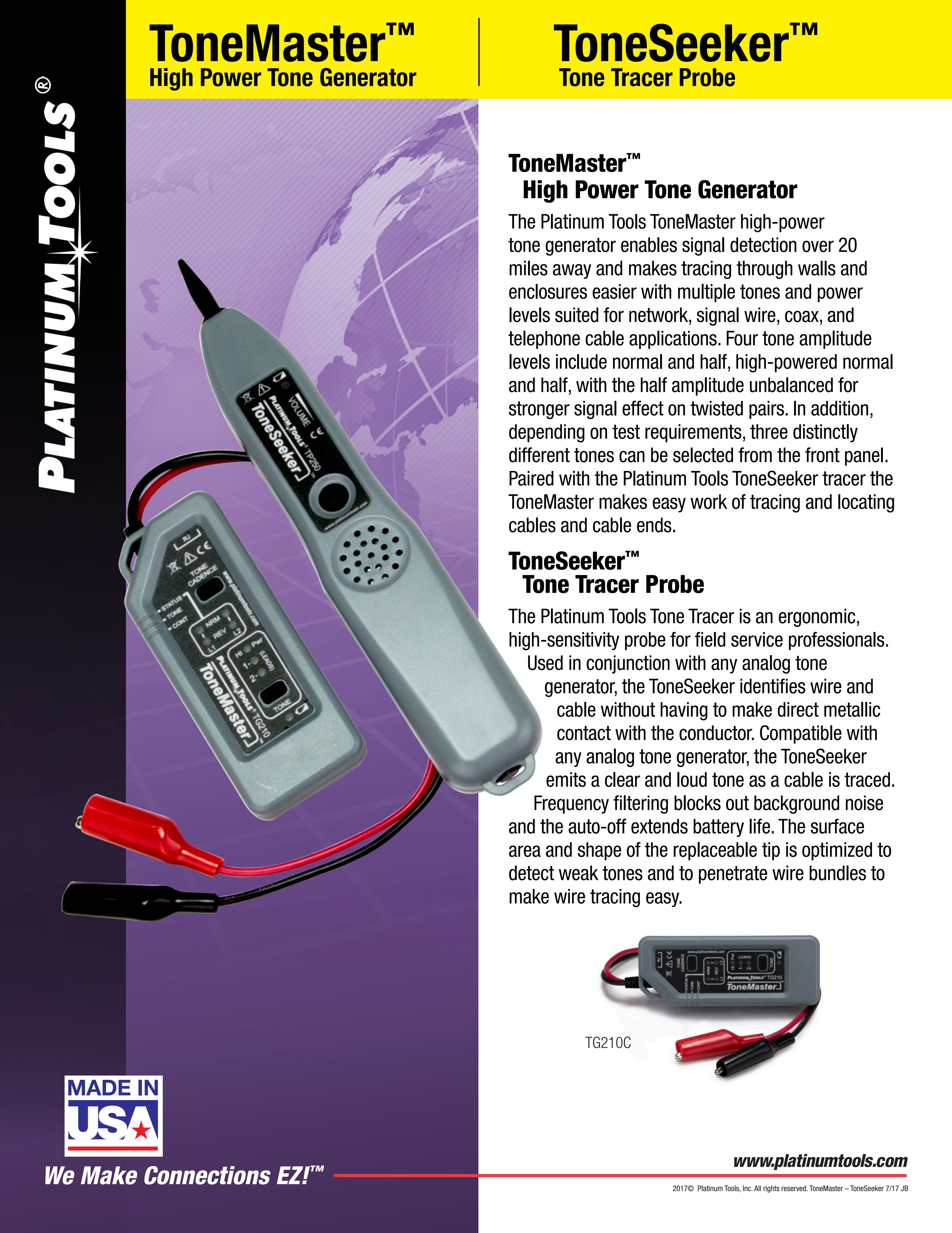

PLATINUM ToneMaster™ ToneSeeker™ Generator

Professional Tone & Probe Kit
c/w Alligator Clips + Belt Pouch
*Special Order! NCNR - Check Lead Time*


This kit gives technicians a high powered tone generator with alligator clips and a high quality tone tracing probe.
The high-power tone generator enables signal detection over 20 miles away and makes tracing through walls and enclosures easier with multiple tones and power levels suited for network, signal wire, coax, and telephone cable applications. Four tone amplitude levels include normal and half, high-powered normal and half, with the half amplitude unbalanced for stronger signal effect on twisted pairs. In addition, depending on test requirements, three distinctly different tones can be selected from the front panel. Paired with the ToneSeeker tracer the ToneMaster makes easy work of tracing and locating cables and cable ends.
The tone tracer is an ergonomic, high-sensitivity probe for field service professionals. Used in conjunction with any analog tone generator, it identifies wire and cable without having to make direct metallic contact with the conductor. Compatible with any analog tone generator, it emits a clear and loud tone as a cable is traced. Frequency filtering blocks out background noise and the auto-off extends battery life. The surface area and shape of the replaceable tip is optimised to detect weak tones and to penetrate wire bundles to make wire tracing easy.
ToneMaster™ High Power Tone Generator Features:

  • 700% more power than standard tone generators
  • Unbalanced tone mode supports longer distances on UTP cables
  • Constant amplitude output ensures no signal decrease as battery discharges
  • Auto-off for battery conservation
  • Full talk battery to power a dry line
  • Tone may be added in any mode – phone sets without a monitor feature can pick up tone
  • Models available with molded-in alligator clips or molded-in angled bed-of-nails (ABN) clips

Tone Frequencies:
Dual 1,165 Hz and 874 Hz
Two single tones 1,165 Hz and 874 Hz
Tone Power:
Typical (into 600Ω, new battery to 5.0 V)
LO 3.6 dBm
HI 9.3 dBm
High Power Mode
LO 12.3 dBm
HI 18.4 dBm
Voltage Protection:
Status – DC 60 V, continuous / AC 300 V peak, 2 secs
Continuity (into 600Ω) – DC 52 V
Tone Mode: 250 DC or peak AC volts
Electrical Battery Life:
Time is for the full capacity of the battery used continuously (one 9 V Alkaline, 540 mA-hr, not included): 120 hrs, typical
ToneSeeker™ Tone Tracer Probe Features:

  • Comfortable ergonomic shape, balanced weight
  • Volume control
  • Recessed “on” switch
  • Tip replacement without opening case
  • Battery-low indicator
  • Slender profle to ft in any tool pouch
  • Lanyard attachment point

Tone Sensitivity:
Input Impedance:
10MΩ (to internal ground, inaccessible outside the case)
Probe Tip Resistance (min): 10KΩ/square (bulk resistance)
Frequency Range: 340 Hz – 1.6K Hz
Electrical Battery Life:
Time is for the full capacity of the battery used continuously (one 9 V
