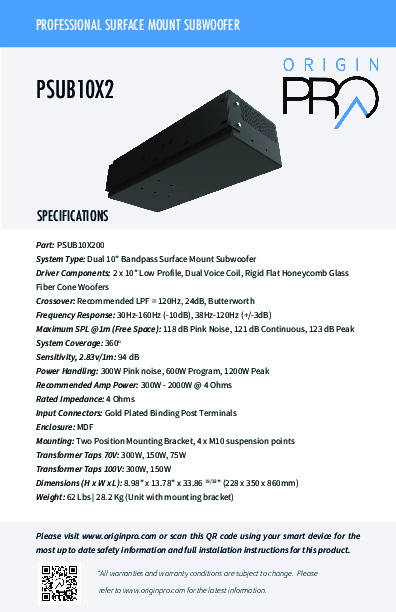

- System Type: Dual 10" Bandpass Surface Mount Subwoofer
- Driver Components: 2 × 10" low-profile, dual voice coil, rigid flat honeycomb glass fiber cone woofers
- Crossover: Recommended LPF = 120Hz, 24dB Butterworth
- Frequency Response:
- 30Hz–160Hz (-10dB)
- 38Hz–120Hz (±3dB)
- Maximum SPL @ 1m (Free Space):
- 118dB (Pink Noise)
- 121dB (Continuous)
- 123dB (Peak)
- System Coverage: 360°
- Sensitivity (2.83V/1m): 94dB
- Power Handling:
- 300W (Pink Noise)
- 600W (Program)
- 1200W (Peak)
- Recommended Amplifier Power: 300W–2000W @ 4Ω
- Rated Impedance: 4Ω
- Input Connectors: Gold-plated binding post terminals
- Enclosure Material: MDF
- Mounting:
- Two-position mounting bracket
- 4 × M10 suspension points
- 70V Transformer Taps: 300W, 150W, 75W
- 100V Transformer Taps: 300W, 150W
- Dimensions (H × W × L):
- 228 × 350 × 860mm
- 8.98" × 13.78" × 33.86"
- Weight: 28.2kg (62lbs), including mounting bracket
