ORIGIN ACOUSTICS Composer Theater Series

In-Wall LCR Loudspeaker - Exclusive Silk
DPSD Tweeter,Dual 3.5" Glass Fibre Woofers
Patented Spring Lock Tool-less Mounting
*Special Order! NCNR - Check Lead Time*

SKU: LCR37

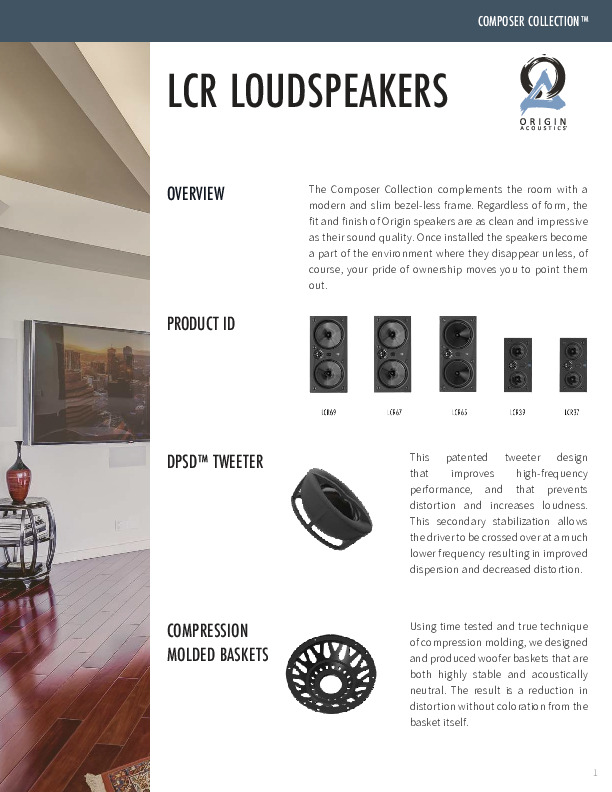

  Product Documents

ORIGIN ACOUSTICS Composer Theater Series

In-Wall LCR Loudspeaker - Exclusive Silk
DPSD Tweeter,Dual 3.5" Glass Fibre Woofers
Patented Spring Lock Tool-less Mounting
*Special Order! NCNR - Check Lead Time*


OVERVIEW

The Origin Acoustics LCR37 is a high-performance 3-way loudspeaker designed specifically for left, centre and right channel duties in home cinema systems. Part of the Composer Collection, the LCR37 combines exceptional vocal clarity, dynamic output and controlled bass performance in a slim-profile cabinet suitable for both in-wall and on-wall installations.

Designed for media rooms, dedicated cinemas and premium living spaces, the LCR37 delivers the performance expected from a traditional cabinet speaker while maintaining the discreet appearance demanded in modern installations.

KEY FEATURES

• True 3-way speaker design
• Dedicated left, centre or right channel application
• Dual 7" glass fibre woofers
• 4" glass fibre midrange driver
• 1" aluminium dome tweeter
• Slim-profile cabinet design
• Can be installed vertically or horizontally
• Suitable for behind-screen installations
• High output capability
• Magnetic paintable grille

TECHNICAL SPECIFICATIONS

Driver Configuration:
• Tweeter: 1" Aluminium Dome
• Midrange: 4" Glass Fibre
• Woofers: Dual 7" Glass Fibre

Performance:
• Frequency Response: 48Hz – 20kHz
• Nominal Impedance: 8 Ohm
• Sensitivity: 91dB
• Recommended Amplifier Power: 50 – 200 Watts RMS

INSTALLATION DATA

Applications:
• Left Channel
• Centre Channel
• Right Channel

Mounting Options:
• In-wall installation
• On-wall installation
• Behind acoustically transparent screens
• Media wall integration

Cabinet Design:
• Slim-profile enclosure
• Paintable magnetic grille
• Flexible horizontal or vertical orientation

INSTALLER NOTES

Recommended Applications:
• Dedicated home cinemas
• Media rooms
• Living room cinema systems
• TV feature walls
• Acoustically transparent screen installations
• High-performance multi-channel systems

Placement Guidance:
• Position LCR speakers at ear height where possible
• For centre channel applications, mount directly above or below the display
• Suitable for installation behind acoustically transparent projection screens
• Match with Origin Acoustics in-ceiling speakers for immersive Dolby Atmos systems
• Pair with dedicated subwoofers for full cinema performance

Origin Technologies

True 3-Way Design

Unlike many architectural LCR speakers that rely on a two-way design, the LCR37 features dedicated bass, midrange and high-frequency drivers. This provides clearer dialogue, improved dynamics and greater detail at higher listening levels.

Glass Fibre Drivers

The glass fibre cones offer an excellent balance of stiffness and damping, reducing unwanted resonance while maintaining accurate bass and midrange reproduction.

Dedicated Centre Channel Performance

Dialogue is the most important element of any cinema system. The dedicated midrange driver ensures voices remain clear, intelligible and anchored to the screen, even during demanding movie soundtracks.

Why Installers Like It

The LCR37 bridges the gap between traditional hi-fi speakers and architectural audio. It provides the performance required for serious cinema installations while allowing installers to create clean, minimalist media walls without visible floor-standing speakers.

Its flexible mounting options make it equally suitable for dedicated cinema rooms, premium lounges and modern media wall projects.
