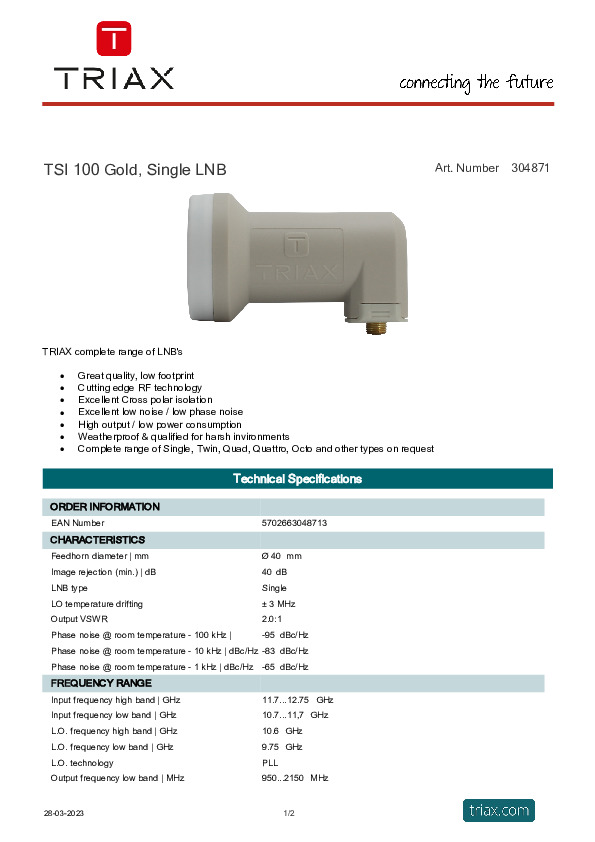

Universal Single LNB, TSID
- Great quality, low footprint
- Cutting-edge RF technology to meet the most critical demands
- Excellent cross polar isolation
- Excellent noise figures and low phase noise
- High output and low power consumption
- Weatherproof and qualified for harsh environments
- ‘Classic’ L shaped housings
CHARACTERISTICS
Phase noise @ room temperature - 1 kHz: - 60 dBc/Hz
Phase noise @ room temperature - 10 kHz: - 80 dBc/Hz
Phase noise @ room temperature - 100 kHz: - 100 dBc/Hz
Spurious level: - 60 (max.) dBm
Image rejection (min.): 40 dB
Output VSWR: 2.0:1
Feedhorn diameter: Ø 40 mm
LO temperature drifting: ± 3 MHz
LNB type: Single
FREQUENCY
Input frequency low band: 10.7...11.7 GHz
Input frequency high band: 11.7...12.75 GHz
Output frequency low band: 950...2150 MHz
L.O. frequency low band: 9.75 GHz
L.O. frequency high band: 10.6 GHz
GAIN
Gain flatness (across 26 MHz segm): 5 dB
Conversion gain (typ.): 55...65 dB
Noise figure max.: ≤ 1.0 dB
ISOLATION
Cross polarisation isolation: 20 dB
ELECTRICAL
Impedance: 75 Ω
OPERATIONAL
DC Current consumption: 100 mA
Operating voltage vertical: 10.5...14.5 V/DC
Operating voltage horizontal: 15.5...21.0 V/DC
Temperature - operating: -30...60 °C
CONNECTORS
Connector Type: F-female
MECHANICAL
Reflector type: Offset
Product Height: 110 mm
Product Depth: 52 mm
Product Width: 60 mm
Colour: RAL 7035 - Light grey
