TRIAX TTOT Optical Transmitter TERR

5-790Mhz Input SC/APC Output 1550nm
c/w WDM - 2 Year Warranty
*SPECIAL PROMOTIONAL PRICE SAVE 45%!*

SKU: 307771

Supplier: Triax

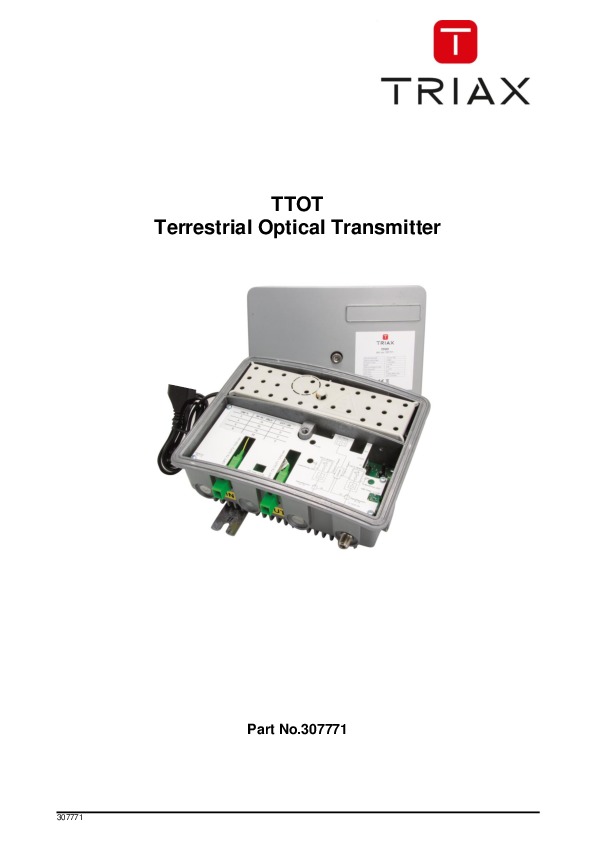

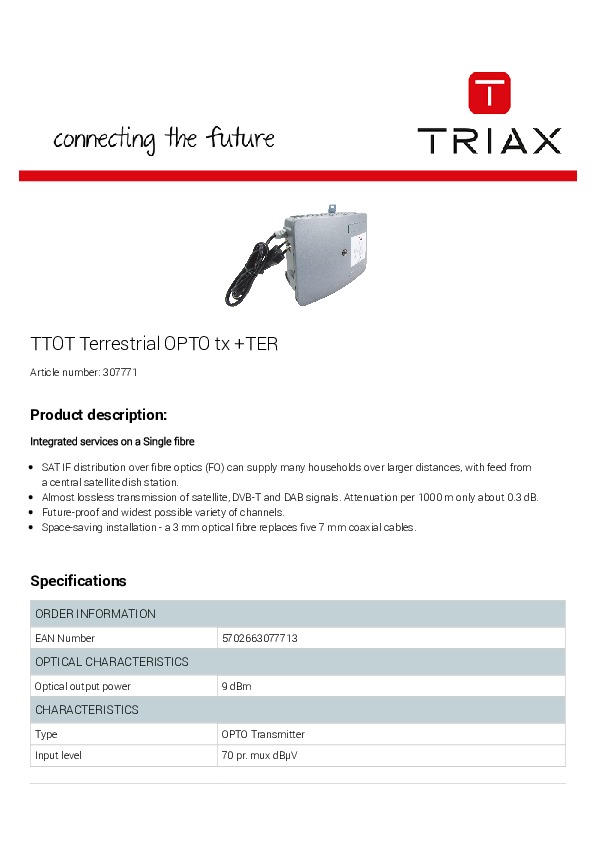

  Product Documents

PDF1 PDF2

TRIAX TTOT Optical Transmitter TERR

5-790Mhz Input SC/APC Output 1550nm
c/w WDM - 2 Year Warranty
*SPECIAL PROMOTIONAL PRICE SAVE 45%!*


Integrated services on a single fibre.

- SAT IF distribution over fibre optics (FO) can supply many households over larger distances, with feed from a central satellite dish station
- Almost lossless transmission of satellite, DVB-T and DAB signals. Attenuation per 1000 m only about 0.3 dB
- Future-proof and widest possible variety of channels
- Space-saving installation - a 3 mm optical fibre replaces five 7 mm coaxial cables.

OPTICAL CHARACTERISTICS
Optical output power: 9 dBm

CHARACTERISTICS
Type: OPTO Transmitter
Input level: 70 pr. mux dBµV
Wavelength: 1550 nm
Laser type: DFB
Gain ripple across band (max.): ±2.5 dB

FREQUENCY
Frequency range TER: 5---790 MHz

LOSS
Adjustable attenuator: 0...15 dB

ELECTRICAL
Impedance: 75 Ω

OPERATIONAL
AC Supply voltage: 200...240 VAC
Power Consumption (typ.): 6 W
IP Housing protection class: IP 50
Temperature - operating: -20...55 °C

CONNECTORS
Connector IN: Optical - SC/APC + F-female
Connector OUT: Optical - SC/APC
Number of inputs: 2 (loopthrough from TSOT)
Number of outputs: 1

MECHANICAL
Dimensions product (H x D x W): 225x190x86 mm
