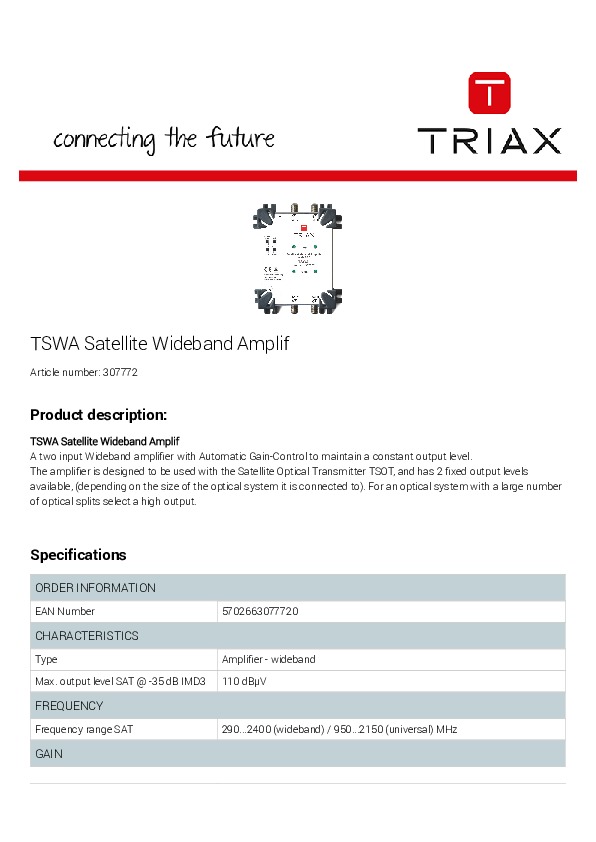

TRIAX TSWA-1 Wideband Amp SAT

TSWA Satellite Wideband Amplifier

A two input wideband amplifier with Automatic Gain-Control to maintain a constant output level.

The amplifier is designed to be used with the Satellite Optical Transmitter TSOT, and has 2 fixed output levels available, (depending on the size of the optical system it is connected to). For an optical system with a large number of optical splits select a high output.

CHARACTERISTICS
Type: Amplifier - wideband
Max. output level SAT @ -35 dB IMD3: 110 dBµV

FREQUENCY
Frequency range SAT: 290...2400 (wideband) / 950...2150 (universal) MHz

GAIN
Gain: 20 dB
Gain Adjustment: 20 (AGC) select
Slope: 15 (AGC) select dB
Noise figure (typical): 5 dB

ELECTRICAL
Impedance: 75 Ω

OPERATIONAL
DC Operating voltage: 20 VDC
Remote Supply: 20/150 V/mA
DC Current consumption: 150 mA

CONNECTORS
Connector IN: F-female
Connector OUT: F-female
Number of inputs: 2
Number of outputs: 2

MECHANICAL
Dimensions product (H x D x W): 129x114x51 mm
