Description

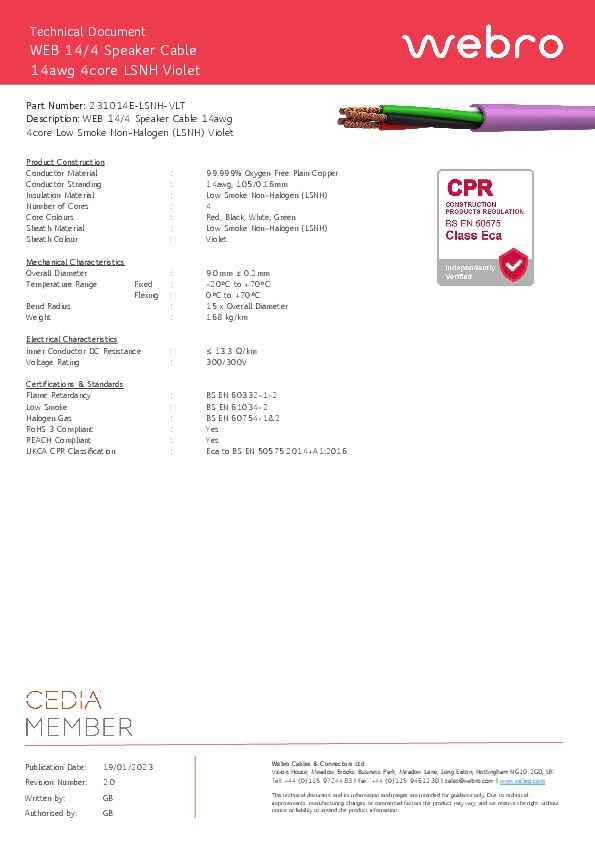

WEB 14/4 Speaker Cable 14awg 4core Low Smoke Non-Halogen (LSNH) Violet
Product Construction
- Conductor Material: 99.999% Oxygen Free Plain Copper
- Conductor Stranding: 14awg, 105/0.16mm
- Insulation Material: Low Smoke Non-Halogen (LSNH)
- Number of Cores: 4
- Core Colours: Red, Black, White, Green
- Sheath Material: Low Smoke Non-Halogen (LSNH)
- Sheath Colour: Violet
Mechanical Characteristics
- Overall Diameter: 9.0mm ± 0.2mm
- Temperature Range: Fixed -20°C to +70°C / Flexing 0°C to +70°C
- Bend Radius: 15 x Overall Diameter
- Weight: 168 kg/km
Electrical Characteristics
- Inner Conductor DC Resistance: ≤ 13.3 Ω/km
- Voltage Rating: 300/300V
Certifications & Standards
- Flame Retardancy: BS EN 60332-1-2
- Low Smoke: BS EN 61034-2
- Halogen Gas: BS EN 60754-1&2
- RoHS 3 Compliant: Yes
- REACH Compliant: Yes
- UKCA CPR Classification: Eca to BS EN 50575:2014+A1:2016
