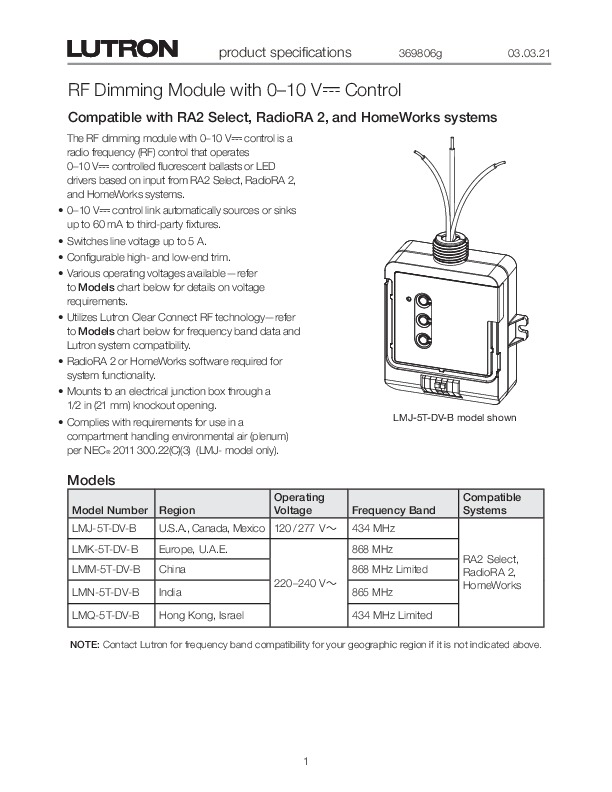

The RF dimming module with 0–10 V- control is a radio frequency (RF) control that operates 0–10 V- controlled fluorescent ballasts or LED drivers based on input from RA2 Select, RadioRA 2, and HomeWorks systems.
Main features:
- 0–10 V- control link automatically sources or sinks up to 60 mA to third-party fixtures.
- Switches line voltage up to 5 A.
- Configurable high- and low-end trim.
- Various operating voltages available—refer to Models chart below for details on voltage requirements.
- Utilises Lutron Clear Connect RF technology—refer to Models chart below for frequency band data and Lutron system compatibility.
- RadioRA 2 or HomeWorks software required for system functionality.
- Mounts to an electrical junction box through a 1/2 in (21 mm) knockout opening.
- Complies with requirements for use in a compartment handling environmental air (plenum) per NEC® 2011 300.22(C)(3) (LMJ- model only).
