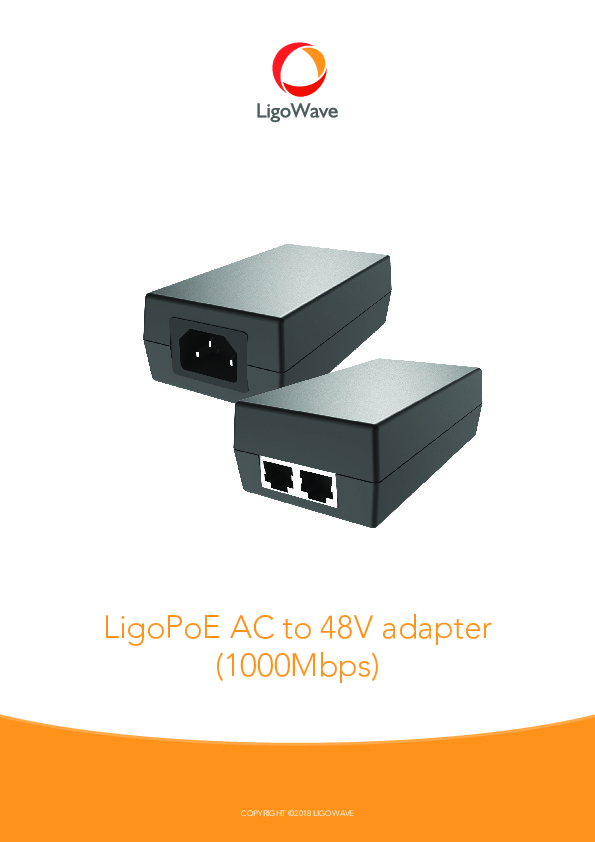

The adapter is used to power passive PoE of LigoDLB PRO series/LigoPTMP series/NFT 2ac/3ac/NFT 1N-af products from standard AC power source.
Electrical Specifications
Input voltage: 100 – 240 VAC, 50/60 Hz
Output voltage: 48 VDC +/- 5%
Output power: 24 W
Output PoE type: 802.3af/at on 1,2,4,5(+) and 3,6,7,8(-) pins
Data rate: 1000 Mbps
Protection: Short circuit, overvoltage, overcurrent
Physical Specifications
Input jack: IEC320 C6
Output jack: RJ-45
Data jack: RJ-45
Dimensions: 123 x 60 x 39 mm
Weight: 190 g
Operating temperature: -10 to +50 C
UTP/FTP cable length: 100 m total (from switch to the device)
