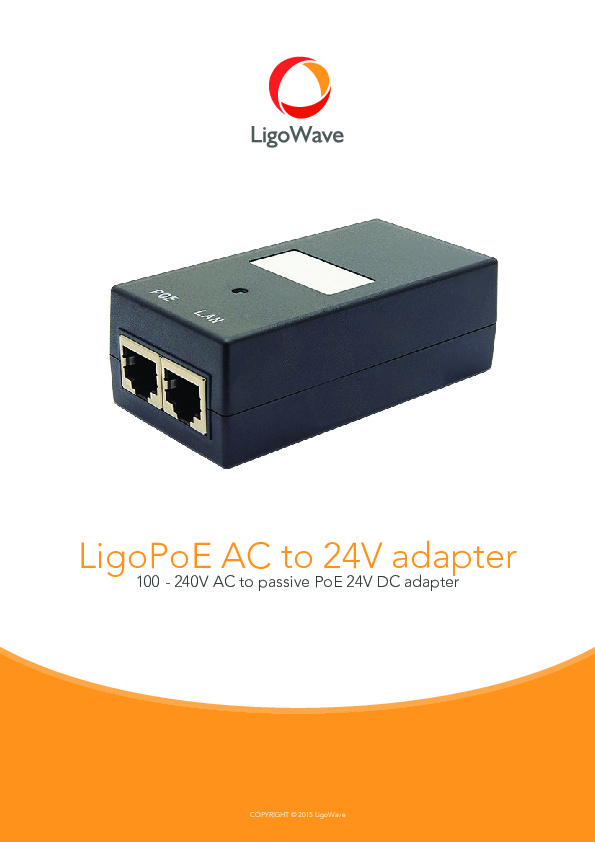

The adapter is used to power passive PoE of NFT 1Ni, DLBn products product from standard AC power source.
Electrical specifications
Input voltage 100 – 240 VAC, 50/60 Hz
Output voltage 24 VDC +/- 5%
Output power 12 W
Output PoE type Passive on 4,5(+) and 7,8(-) pins
Data rate 100 Mbps
Protection Short circuit, overcurrent
Physical specifications
Input jack IEC320 C6
Output jack RJ-45
Data jack RJ-45
Dimensions 84.8 x 44 x 29.5 mm
Weight 95 g
Operating temperature -10 to +50 C
UTP/FTP cable length 100 m total (from switch to the device)
