HIKVISION Value Card Terminal

Outdoor Application, Supports IP65
Max. 5000 Cards & 1000 Users
*Special Order! NCNR - Check Lead Time*

SKU: DS-K1T809MWX

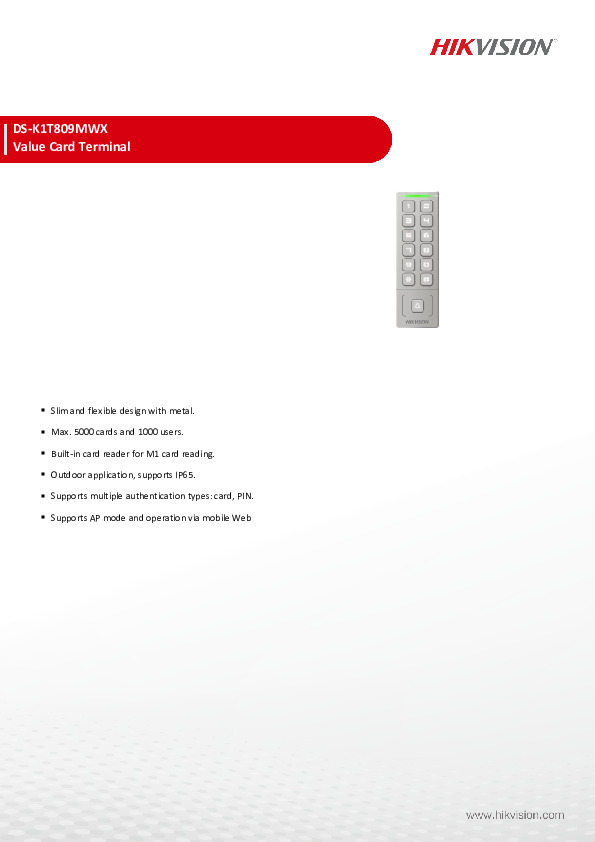

  Product Documents

HIKVISION Value Card Terminal

Outdoor Application, Supports IP65
Max. 5000 Cards & 1000 Users
*Special Order! NCNR - Check Lead Time*


The Hikvision Value Card Terminal is specifically designed for installers who prioritise functionality and durability. It offers streamlined installation and smooth operation, even in outdoor conditions.

Key Selling Features:
• Exquisite, sleek, and flexible metal design assuring durability and aesthetic appeal
• Capable of accommodating a maximum of 5000 cards and 1000 users
• Integral reader designed specifically for M1 card reading
• Suited for outdoor applications with an IP65 support rating
• Facilitates multiple authentication types such as card and PIN

Technical Specifications:
• Network - Equipped with Wi-Fi Support
• Interface - Comes with 1 Lock control, 1 Exit button & 1 Door contact input
• Wiegand - Includes Wiegand out, supporting Wiegand 26/34
• Capacity - User capacity of 1000 and Card capacity of 5000
• Authentication - Supports M1 card with Card reading duration of 1s and distance of 3cm
• General - Equipped with physical buttons and an indicator
• Power supply - Requires 12 VDC, 1 A
• Working conditions - Operates between -40 °C to 65 °C with relative humidity of 0 to 90%
• Dimensions - Has compact dimensions of 151 mm × 48 mm × 21.5 mm
• Weight - The net weight of the terminal is 220.3g with a rough weight of 352g

The Hikvision Value Card Terminal is a sleek, high-capacity card reader designed for M1 cards, offering versatile authentication options and durability for outdoor use.
