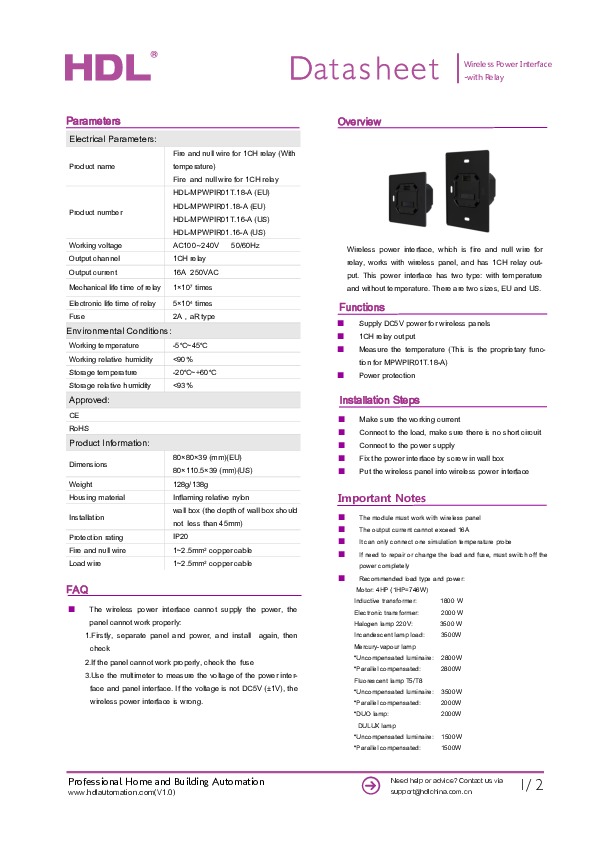

The HDL-MPWPIR01T.18 is a wireless power interface which is fire and null wire for relay, works with wireless panel and has 1CH relay output with temperature.
Functions:
- Supply DC5V power for wireless panels
- 1CH relay output
- Measure the temperature
- Power protection
Electrical Parameters:
- Product name: Fire and null wire for 1CH relay (with temperature)
- Working voltage: AC85-270V 60Hz
- Output channel: 1 channel relay
- Output current: 16A 250VAC
- Mechanical life time of relay: 1x10 7 times
- Electronic life time of relay: 5x10 4 times
- Fuse: 2A, aR type
Environmental Conditions:
Working Temperature: -5 degreeC~45 degreeC
Working relate humidity: < 90%
Storage temperature: -20 degreeC~60degreeC
Storage relative humidity: < 93%
Approved:
- CE
- RoHS
Product Information:
- Dimensions: 84x84x39 mm
- Weight: 128g
- Housing material: Inflaming retarding nylon
- Installation: wall box (the depth of wall box should not less than 45mm)
- Protection rating: IP20
- Fire and null wire: 2.5 mm2 copper cable
- Load wire :2.5 mm2 copper cable
