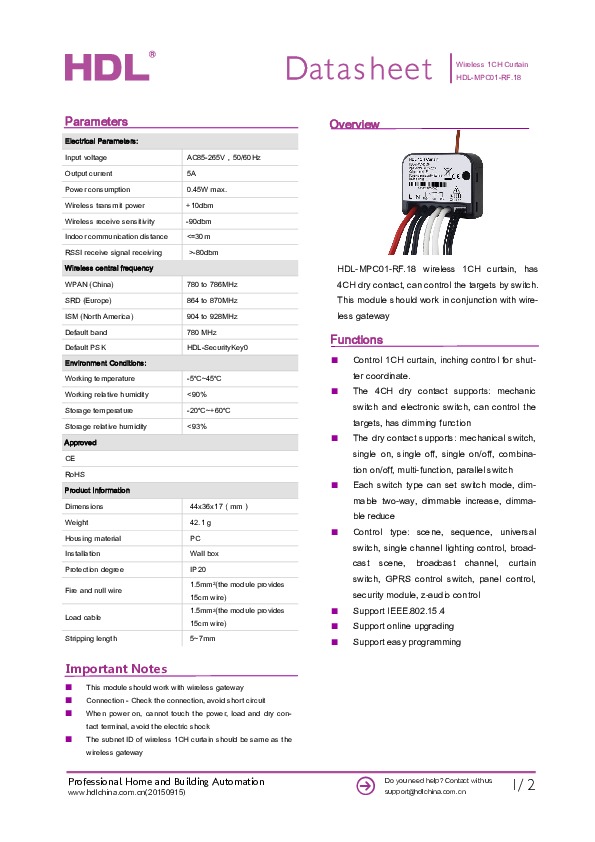

The HDL-MPC01-RF.18 wireless 1CH curtain, has 4CH dry contact and can control the targets by switch.
This module should work in conjunction with the wireless gateway.
Functions:
- Control 1CH curtain, inching control for shut-ter coordinate
- The 4CH dry contact supports: mechanic switch and electronic switch, can control the targets, has dimming function
- The dry contact supports: mechanical switch, single on, single off, single on/off, combination on/off, multi-function, parallel switch
- Each switch type can set switch mode, dimmable two-way, dimmable increase, dimmable reduce
- Control type: scene, sequence, universal switch, single channel lighting control, broad-cast scene, broadcast channel, curtain switch, GPRS control switch, panel control, security module, z-audio control
- Support IEEE.802.15.4
- Support online upgrading
- Support easy programming
Electrical Parameters:
- Input voltage:AC85-265V 50/60Hz
- Output current:5A
- Power consumption:0.45W max.
- Wireless transmit power:+10dbm
- Wireless receive sensitivity:-90dbm
- Indoor communication distance:<=30m
- RSSI receive signal receiving:>-80dbm
Wireless central frequency:
- WPAN (China):780 to 786MHz
- SRD (Europe):864 to 870MHz
- ISM (North America):904 to 928MHz
- Default band:780 MHz
-Default PSK:HDL-SecurityKey0
Approved:
- CE
- RoHS
Product Information:
- Dimensions:44x36x17 mm
- Weight:42.1 g
- Housing material:PC
- Installation:Wall box
- Protection degree:IP20
- Fire and null wire:1.5mm2(the module provides 15cm wire)
- Load cable:1.5mm2(the module provides 15cm wire)
- Stripping length:5~7mm
