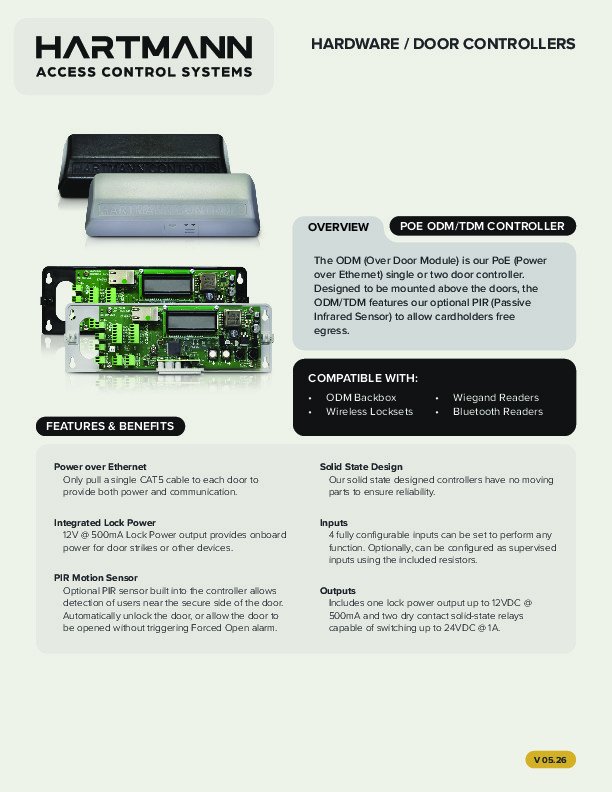

The POE-TDM is the PoE (Power over Ethernet) two door controller. Designed to be mounted above or near a door; the TDM saves time on installation, troubleshooting and cabling costs. Mount above 1 door and run standard access control cable to a nearby door within 500’. External power for a second strike may be required. This controller features our built-in PIR (Passive Infrared Sensor) to allow cardholders free egress.
- Outputs: Two dry contact solid state relays can switch up to 24VDC 1A.
- Inputs: Four fully configurable inputs can be set to perform any function. Optionally can be configured as supervised inputs using the included resistors
- Power over Ethernet: Only pull a single CAT5 cable to each door to provide both power and communication.
- Integrated Lock Design: 2V @500mA lock power output provides onboard power for door strikes or other devices.
- Solid State Design: Our solid state designed controllers have no moving parts to ensure reliability.
- Onboard Diagnostics: Using the LCD display and buttons on the controller, reader, output and input issues can be troubleshot. Mounting the controller above the door allows a single technician to easily diagnose issues. Diagnostics and IP programming are also accessible via password/bruteforce protected web interface.
- PIR Motion Sensor: Optional PIR sensor built into the controller allows detection of users near the secure side of the door. Automatically unlock the door, or allow the door to be opened without triggering forced open alarm.
