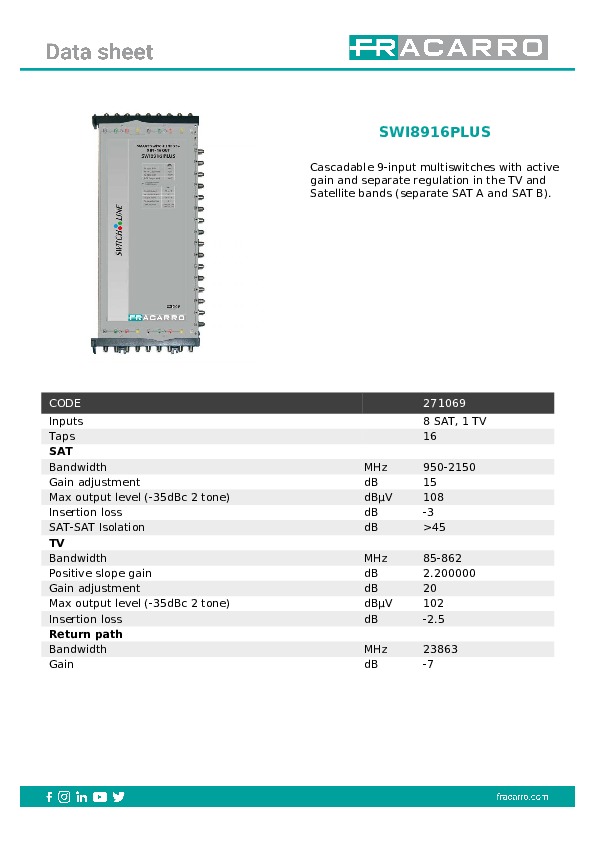

Cascadable 9-input multiswitches with active gain and separate regulation in the TV and Satellite bands (separate SAT A and SAT B).
Main features:
- 9 inputs (8 Satellite, 1 Terrestrial)
- 16 outputs
- 2 Satellite gain adjustment: SAT A and SAT B
- Terrestrial gain adjustment
- Isolation > 45dB
- Low power consumption
- Capable of 100m drop lengths
- Low insertion loss
- Standard colour coding
- HD compliant
- Fixed gain on return path
Satellite
Bandwidth MHz: 950-2150
Gain adjustment dB: 15
Max output level (-35dBc 2 tone) dBµV: 108
Insertion loss dB: -3
SAT-SAT Isolation: dB: >45
TV
Bandwidth MHz: 85-862
Positive slope gain dB: 2.200000
Gain adjustment dB: 20
Max output level (-35dBc 2 tone) dBµV: 102
Insertion loss dB: -2.5
Return path
Bandwidth MHz; 23863
Gain dB: -7
Max output level (-35dBc 2 tone) dBµV: 100
Insertion loss dB: -1.5
Features
Current consumption mA, V : 350, 14280, 18
Dimensions mm: 425x180x30
Operating temperature °C: -0.181818
