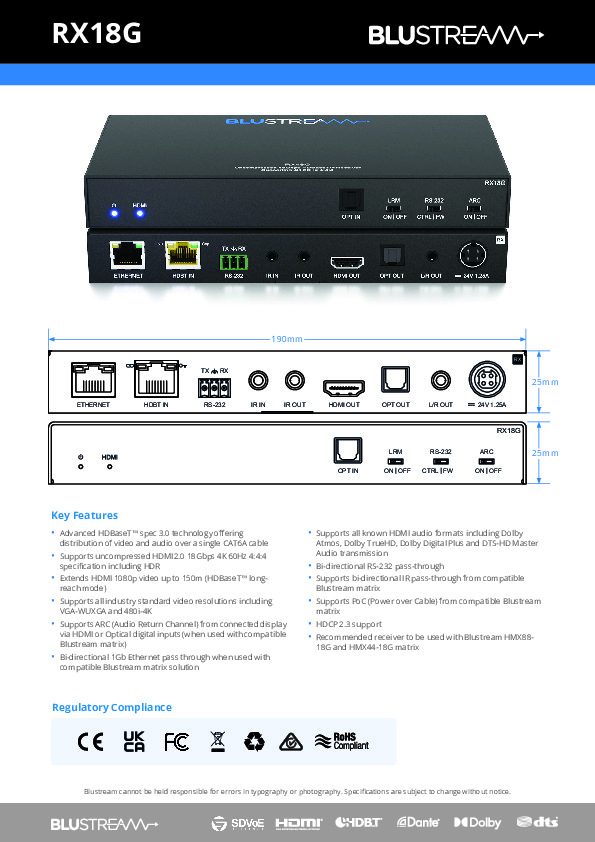

The RX18G receiver is an industry leading uncompressed, unconverted HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.3/2.2 solution utilising the latest in HDBaseT™ technology.
The RX18G supports uncompressed distribution of the latest HDR resolutions including HDR10/10+ and Dolby Vision resulting in the ultimate in picture quality for your critical viewing areas.
The RX18G supports bi-directional IR, RS-232 and PoC up to lengths of 100m over a single CAT6A cable while also providing enhanced features including ARC via HDMI or Optical (S/PDIF), and 1Gb Ethernet pass through.
Key Features:
- Advanced HDBaseT™ spec 3.0 technology offering distribution of video and audio over a single CAT6A cable
- Supports uncompressed HDMI2.0 18Gbps 4K 60Hz 4:4:4 specification including HDR
- Extends HDMI 1080p video up to 150m (HDBaseT™ long-reach mode)
- Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
- Supports ARC (Audio Return Channel) from connected display via HDMI or Optical digital inputs (when used with compatible Blustream matrix)
- Bi-directional 1Gb Ethernet pass through when used with compatible Blustream matrix solution
- Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
- Bi-directional RS-232 pass-through
- Supports bi-directional IR pass-through from compatible Blustream matrix
- Supports PoC (Power over Cable) from compatible Blustream matrix
- HDCP 2.3 support
- Recommended receiver to be used with Blustream HMX88-18G and HMX44-18G matrix
*Transmission distance is subject to video format, cable type and installation environment. It is recommended to use a minimum of CAT6A cabling
Specifications:
- Video Input Connectors: 1 x HDBaseT™ RJ45 connector
- Video Output Connectors: 1 x HDMI Type A, female
- RS232 Input Port: 1 x 3-pin Phoenix connector
- Audio Output Connectors: 1 x Analogue audio L/R (3.5mm stereo jack), 1 x Optical (S/PDIF)
- Audio Input Connectors: 1 x Optical (S/PDIF)
- Ethernet Port: 1 x RJ45 connector
- IR Input Port: 1 x 3.5mm stereo jack
- IR Output Port: 1 x 3.5mm mono jack
- Mounting Kit included
- Casing Dimensions (W x H x D): 190 x 100 x 25mm
- Dimensions Including Connections (W x H x D): 190 x 108 x 25mm
- Power Supply: 24V/1.25A DC, 4-pin DIN
- Shipping Weight: 1.0Kg
- Operating Temperature: 32°F to 104°F (-5°C to +55°C)
- Storage Temperature: -4°F to 140°F (-25°C to +70°C)
