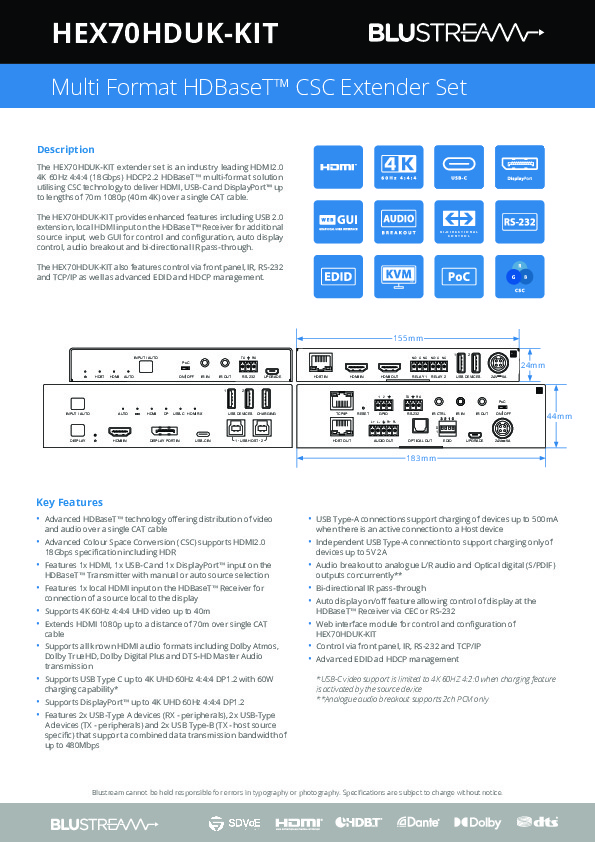

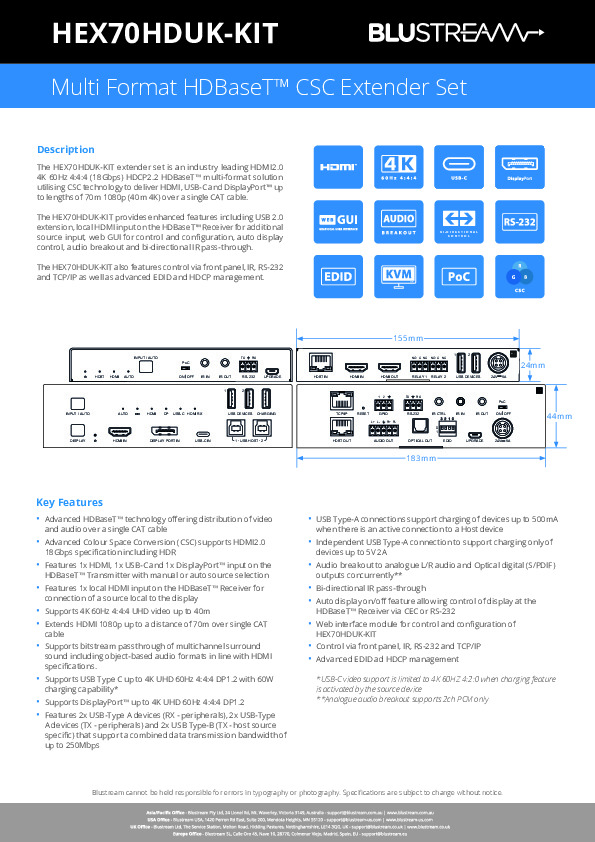

The Blustream HEX70HDUK-KIT extender set is an industry leading HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) HDCP 2.2 HDBaseT™ multi-format solution utilising CSC technology to deliver HDMI, USB-C and DisplayPort at 4K to 40m (with 1080p up to 70m) over a single CAT cable.
The HEX70HDUK-KIT provides enhanced features including local HDMI input on the HDBaseT™ receiver for additional source input, Web GUI for control and configuration, auto display control, audio breakout, and bi-directional IR / RS-232 pass-through.
The HEX70HDUK-KIT features control via front panel, IR, RS-232 and TCP/IP, with advanced EDID and HDCP management.
Key Features:
- Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
- Advanced Colour Space Conversion (CSC) supports HDMI2.0 18Gbps specification including HDR
- Features 1 x HDMI, 1 x USB-C and 1 x DisplayPort™ input on the HDBaseT™ Transmitter with manual or auto source selection
- Features 1 x local HDMI input on the HDBaseT™ Receiver for connection of a source local to the display
- Supports 4K 60Hz 4:4:4 UHD video up to 40m
- Extends HDMI 1080p up to a distance of 70m over single CAT cable
- Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
- Supports USB Type C up to 4K UHD 60Hz 4:4:4 DP1.2 with 60W charging capability*
- Supports DisplayPort™ up to 4K UHD 60Hz 4:4:4 DP1.2
- Features 2 x USB-Type A devices (RX - peripherals), 2 x USB-Type A devices (TX - peripherals) and 2 x USB Type-B (TX - host source specific) that support a combined data transmission bandwidth of up to 250Mbps
- USB Type-A connections support charging of devices up to 500mA when there is an active connection to a Host device
- Independent USB Type-A connection to support charging only of devices up to 5V 2A
- Audio breakout to analogue L/R audio and Optical digital (S/PDIF) outputs concurrently**
- Bi-directional IR pass-through
- Auto display on/off feature allowing control of display at the HDBaseT™ Receiver via CEC or RS-232
- Web interface module for control and configuration of HEX70HDUK-KIT
- Control via front panel, IR, RS-232 and TCP/IP
- Supports bi-directional PoC (Power over Cable) to power extenders from either transmitter or receiver end
- Advanced EDID ad HDCP management
* USB-C video support is limited to 4K 60HZ 4:2:0 when charging feature is activated by the source device.
** Analogue audio breakout supports 2ch PCM only.
Specifications:
HEX70HDUK-TX:
- Video Input Connectors: 1 x HDMI Type A, 19-pin, female, 1 x USB-C Type C, 1 x DisplayPort™
- Video Output Connectors: 1 x HDBaseT™ RJ45 connector
- RS-232 Serial Port: 1 x 3-Pin Phoenix connector
- TCP/IP Control: 1 x RJ45, female
- IR Input Ports: 2 x 3.5mm stereo jack
- IR Output Ports: 1 x 3.5mm mono jack
- USB Ports: 3 x USB Type-A (1 x for charging only), 2 x USB Type-B
- EDID: 4-pin DIP switch
- Product Upgrade: 1 x Micro USB, female
- Local Power Input: 1 x 24V/5A 4-pin DIN connector
- Casing Dimensions (W x H x D): 183mm x 44mm x 173mm
HEX70HDUK-RX:
- Video Input Connectors: 1 x HDMI Type A, 19-pin, female, 1 x HDBaseT™ RJ45 connector
- Video Output Connectors: 1 x HDMI Type A, 19-pin, female
- RS-232 Serial Port: 1 x 3-pin Phoenix connector
- Relay Control: 2 x 3-pin Phoenix connector
- IR Input Ports: 1 x 3.5mm stereo jack
- IR Output Ports: 1 x 3.5mm mono jack
- USB Ports: 2 x USB Type-A
- EDID: 4-pin DIP switch
- Product Upgrade: 1 x Micro USB, female
- Local Power Input: 1 x 24V/5A 4-pin DIN connector
- Casing Dimensions (W x H x D): 155mm x 24mm x 155mm
Power Supply: 24V/5A 4-pin DIN connector
Operating Temperature: 32°F to 104°F (-5°C to +55°C)
Storage Temperature: -4°F to 140°F (-25°C to +70°C)
Box Contents:
1 x HEX70HDUK-TX
1 x HEX70HDUK-RX
1 x 24V/5A DC power supply
1 x USB-A to USB-B cable
1 x IRE1 emitter
1 x IRR receiver
1 x RS-232 control cable
2 x Mounting kit
1 x Quick Reference Guide
