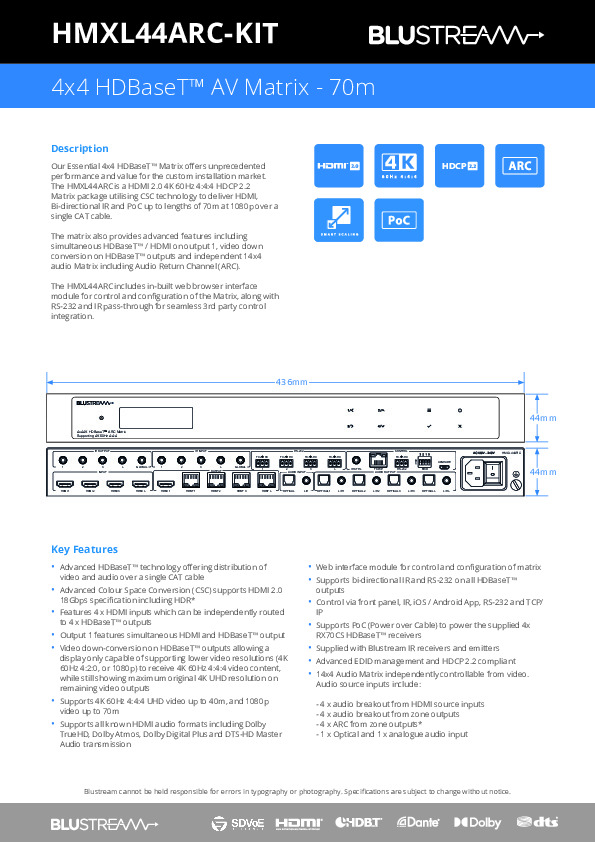

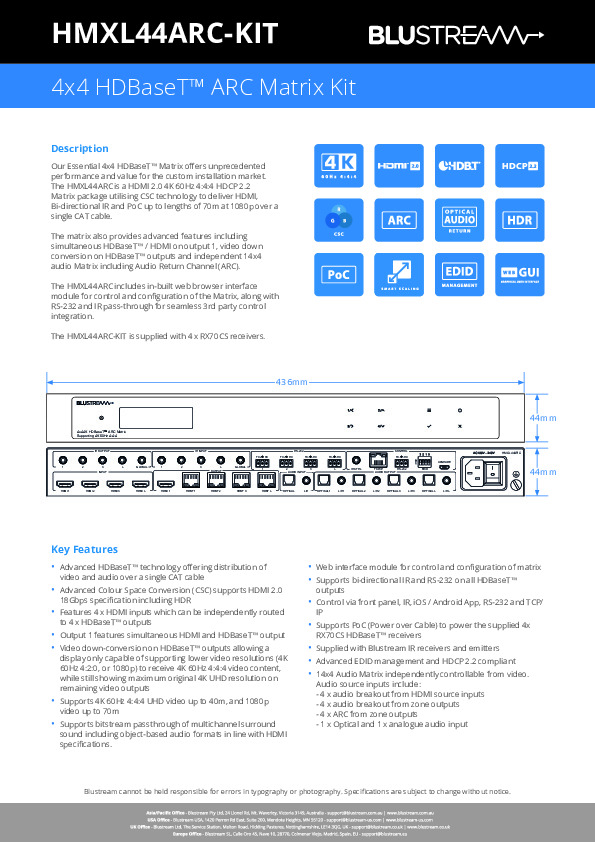

The Blustream Essential 4x4 HDBaseT™ Matrix offers unprecedented performance and value for the custom installation market. The HMXL44ARC is a HDMI2.0 4K60Hz 4:4:4 HDCP2.2 Matrix package utilising CSC technology to deliver HDMI, Bi-directional IR and PoC up to lengths of 70m (at 1080p) over a single CAT cable.
The Matrix also provides advanced features including simultaneous HDBaseT™/HDMI on output 1, video Smart Scaling on HDBaseT outputs and independent 14x4 audio matrix including Audio Return Channel (ARC). The HMXL44ARC includes in-built web browser interface module for control and configuration of the Matrix and RS-232 and IR pass through to enable seamless 3rd party control integration.
Key Features:
- Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
- Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR*
- Features 4 x HDMI inputs which can be independently routed to 4 x HDBaseT™ outputs
- Output 1 features simultaneous HDMI and HDBaseT™ output
- Video Smart Scaling on HDBaseT™ outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K • UHD resolution on remaining video outputs
- Supports 4K 60Hz 4:4:4 UHD video up to 40m and 1080p video up to 70m
- 14x4 Audio Matrix independently controllable from video. Audio source inputs include:
- 4x audio breakout from HDMI source inputs
- 4x audio breakout from zone outputs
- 4x ARC from zone outputs*
- 1x Optical and 1x Analogue audio input - Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
- Web interface module for control and configuration of matrix
- Supports bi-directional IR and RS-232 on all HDBaseT™ outputs
- Control via front panel, IR, iOS / Android App, RS-232 and TCP/IP
- Supports PoC (Power over Cable) to power compatible HDBaseT™ receivers
- Supplied with Blustream IR receivers and emitters
- Advanced EDID management and HDCP 2.2 compliant
- Supplied with 4x RX70CS HDBaseT Receivers
*ARC feature supports HDMI ARC or Optical ARC
*CSC and ARC Feature compatible with RX70CS only
Specifications:
- Video Input Connectors: 4x HDMI Type A, 19-pin, female
- Video Output Connectors: 1x HDMI Type A, 19-pin, female, 4x HDBaseT™ RJ45 connector
- Audio Output Connectors: 1x Analogue audio L/R (3.5mm stereo Jack), 1x Optical (SPDIF)
- Audio Output Connectors: 4x Analogue audio L/R (3.5mm stereo Jack), 4x Optical (SPDIF)
- RS-232 serial ports: 5x 3-pin phoenix connector
- TCP/IP Control: 1x RJ45, female
- IR Input ports: 5x 3.5mm stereo jack
- IR Output ports: 4x 3.5mm mono jack
Rack-Mountable: 1U rack height, rack ears included
Casing Dimensions (WxDxH): 436 x 300 x 44 mm
Operating Temperature: 32°F to 104°F (-5°C to +55°C)
Storage Temperature : -4°F to 140°F (-25°C to +70°C)
Power Supply: Internal 100-240v AC
Box Contents:
1 x HMXL44ARC
4 x RX70CS
1 x Rack mounting kit
1 x Remote control
4 x IR emitters
5 x IR receivers
1x Serial Cable - DB9 to 3-pin phoenix connector
1 x IR Control Cable - 3.5mm-3.5mm Cable
IEC Power Cable(s)
1 x Quick Reference Guide
