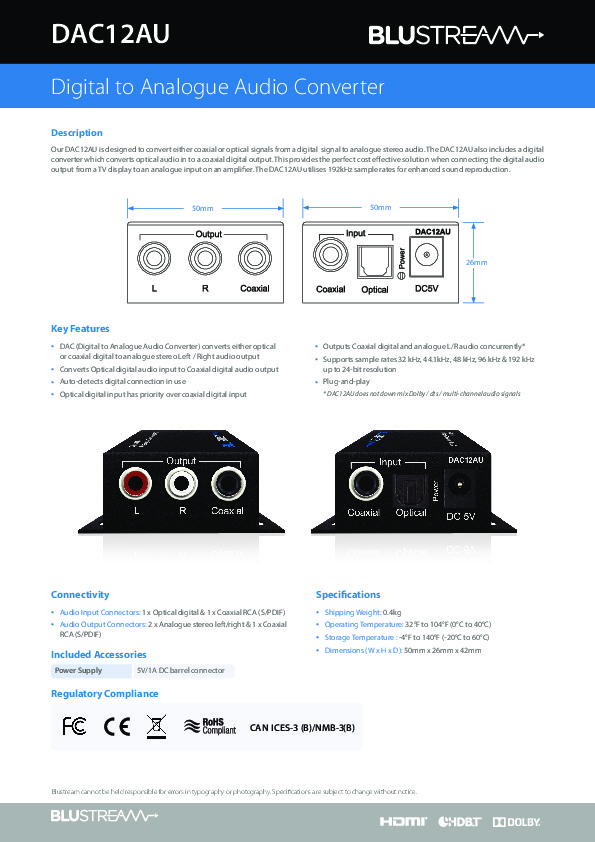

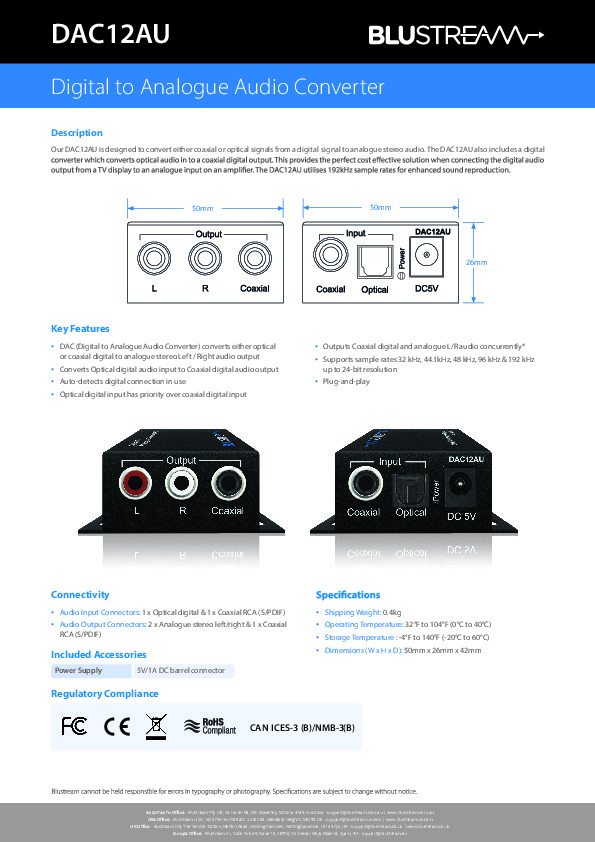

The Blustream DAC12AU is designed to convert either coaxial or optical signals from a digital signal to analogue stereo audio.
It also includes a digital converter which converts optical audio in to a coaxial digital output. This provides the perfect cost effective solution when connecting the digital audio output from a TV display to an analogue input on an amplifier.
The DAC12AU utilises 192kHz sample rates for enhanced sound reproduction.
Key Features:
- Digital to Analogue audio Converter converts either optical or coaxial digital to analogue stereo left / right audio output
- Converts optical digital audio input to coaxial digital audio output
- Auto-detects digital connection in use
- Optical digital input has priority over coaxial digital input
- Outputs coaxial digital and analogue L/R audio concurrently*
- Supports sample rates 32 kHz, 44.1kHz, 48 kHz, 96 kHz & 192 kHz up to 24-bit resolution
- Plug-and-play
*DAC12AU does not down mix multi-channel audio signals
Specifications:
- Audio Input Connectors: 1 x optical digital & 1 x coaxial RCA (S/PDIF)
- Audio Output Connectors: 2 x Analogue stereo left / right & 1 x Coaxial RCA (S/PDIF)
- Dimensions (W x H x D): 50mm x 26mm x 42mm
- Dimensions including connections (W x H x D): 68mm x 26mm x 42mm
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Storage Temperature: -4°F to 140°F (-20°C to 60°C)
- Power Supply: 5V/1A DC
Box Contents:
1 x DAC12AU
1 x 5V/1A DC Power Supply
1 x Mounting Kit
1 x User Manual
