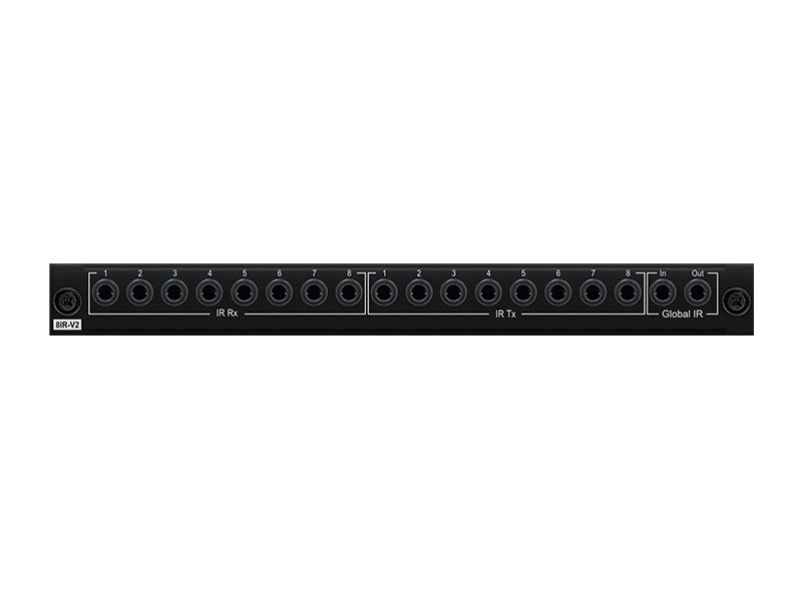

The PRO-8IR-V2 IR routing board offers selectable 5V or 12V IR distribution with 8 x IR outputs for routed control of local source hardware and 8 x IR inputs for distribution of IR to compatible HDBaseT™ receivers. It also features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.
Main features:
- 8 x IR outputs for routed control of local source hardware
- 8 x IR inputs for distribution of IR to compatible HDBaseT™ receivers
- Selectable 5V or 12V IR distribution (12V IR requires compatible IR hardware and HDBaseT™ receivers)
- Quick release card module fittings allowing simple population of input and output cards in Custom Pro Matrix Hub
Specifications:
IR Input Ports: 9 x 3.5mm stereo jack
IR Output Ports: 9 x 3.5mm mono jack
Card Dimensions (W x H x D): 202mm x 22mm x 177mm
Dimensions Including Connections (W x H x D): 202mm x 22mm x 188mm
Shipping Weight: 0.5kg
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Storage Temperature: -4°F to 140°F (-20°C to 60°C)
