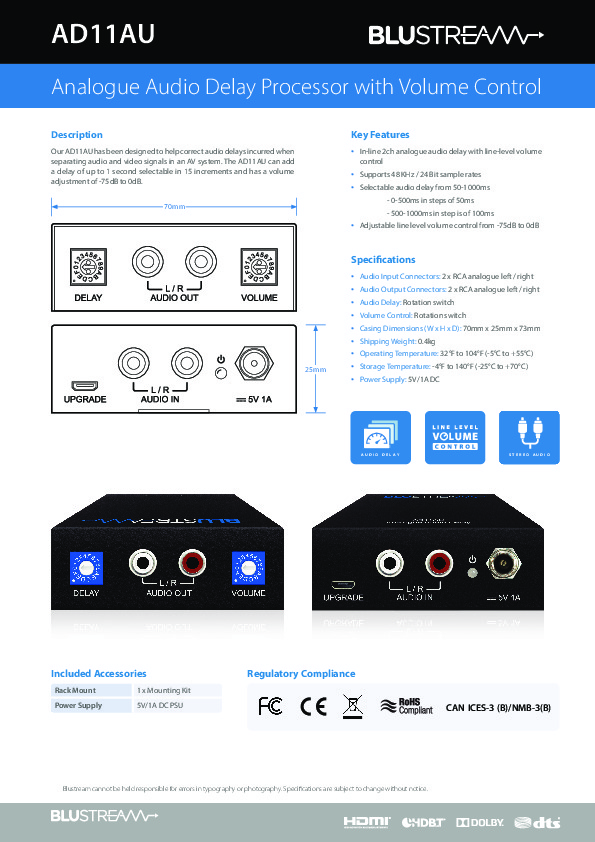

The Blustream AD11AU has been designed to help correct audio delays incurred when separating audio and video signals in an AV system.
The AD11AU can add a delay of up to 1 second selectable in 15 increments and has a volume adjustment of -75dB to 0dB.
Key features:
- In-line 2ch analogue audio delay with line-level volume control
- Supports 48KHz / 24 bit sample rates
- Selectable audio delay from 50-1,000ms
- 0-500ms in steps of 50ms
- 500-1,000ms in step is of 100ms - Adjustable line level volume control from -75dB to 0dB
Specifications:
- Audio Input Connectors: 2 x RCA analogue left/right
- Audio Output Connectors: 2 x RCA analogue left/right
- Audio Delay: Rotation switch
- Volume Control: Rotation switch
- Casing Dimensions (W x H x D): 70mm x 25mm x 73mm
- Operating Temperature: 32°F to 104°F (-5°C to +55°C)
- Storage Temperature: -4°F to 140°F (-25°C to +70°C)
- Power Supply: 5V/1A DC
Box Content:
1 x AD11AU
1 x 5V/1A DC Power Supply
1 x Mounting Kit
1 x Quick Reference Guide
