The AMF41W is an advanced 4K multi-format presentation switch featuring 4 x HDMI, AirPlay and Miracast® inputs to a single HDMI output.
It provides enhanced features including localised 2.4/5G WIFI hotspot, seamless switching, multiview presentation, video scaling and web GUI for control and configuration.
The AMF41W also features auto display control via RS-232, manual or automated source selection and control via front panel, RS-232 and TCP/IP.
It is an ideal product for your boardroom, classroom or huddle-space application.
Key Features:
- Features 4x HDMI, AirPlay and Miracast® inputs which can be switched to a single HDMI output
- Localised 2.4G/5G WiFi hotspot to host AirPlay and Miracast® local streaming to AMF41W
- Multiview presentation with up to 7 concurrent video signals and configurable screen layout
- Seamless switching of sources in both single or multiview mode
- In-built video scaler with output timing up to 4K 60Hz 4:4:4
- HDMI inputs support resolutions up to 4K UHD 60Hz 4:2:0 / 4K 30Hz 4:4:4*
- Supports AirPlay mirror and Miracast® point-to-point mode (up to 1080p)
- Audio breakout to analogue L/R audio
- LAN connection for integration to existing network infrastructures
- Auto display on/off feature allowing control of display via RS-232
- Web interface module for control and configuration of switch
- Control via front panel, RS-232 and TCP/IP with manual or auto source selection
* Please note: the AMF41W does not accept interlaced video formats
Specifications:
- Video Input Connectors: 4 x HDMI Type A, 19-pin, female
- Video Output Connectors: 1 x HDMI Type A, 19-pin, female
- Audio Output Connectors: 1 x 3.5mm stereo jack
- RS-232 serial port: 1 x 4-Pin Phoenix connector
- TCP/IP Control: 1 x RJ45, female
- USB Connectors: 1 x USB Type A female
- WiFi: 2.4G & 5G
- Casing Dimensions (W x H x D): 215mm x 25mm x 141mm (excluding antennas)
- Operating Temperature: 32°F to 113°F (0°C to +45°C)
- Storage Temperature: -4°F to 150°F (-25°C to +70°C)
- Power Supply: 12V/2A DC, screw type barrel connector
Box Contents:
1 x AMF41W
1 x 12V/2A DC power supply
1 x 4-pin Phoenix connector (RS-232)
2 x Antenna
1 x Mounting kit

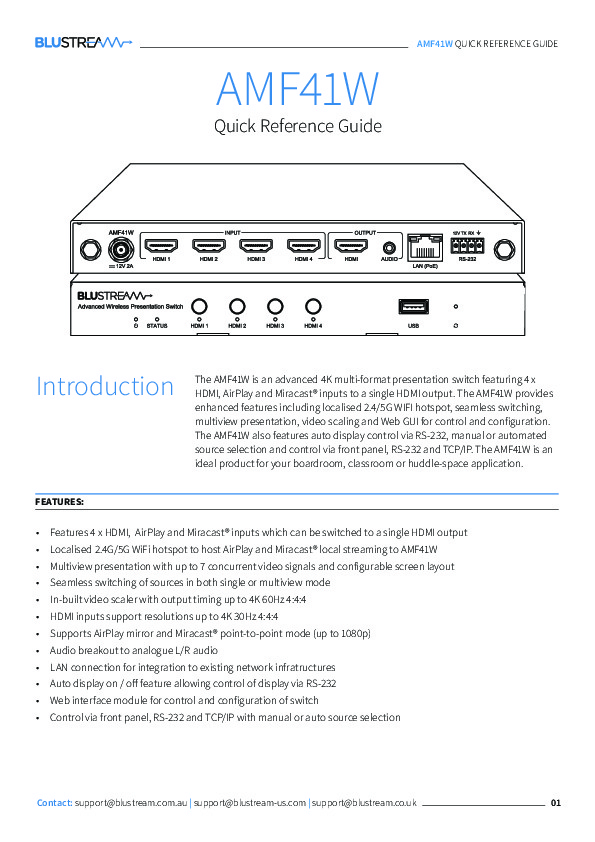

1 x Quick reference guide
