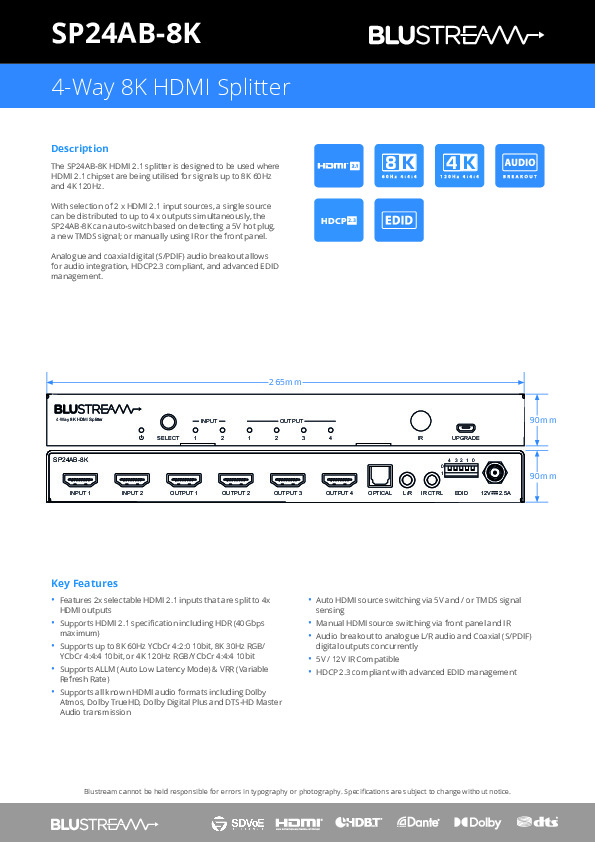

The SP24AB-8K HDMI 2.1 splitter is designed to be used where HDMI 2.1 chipset are being utilised for signals up to 8K 60Hz and 4K 120Hz. With selection of 2 x HDMI 2.1 input sources, a single source can be distributed to up to 4 x outputs simultaneously, the SP24AB-8K can auto-switch based on detecting a 5V hot plug, a new TMDS signal; or manually using IR or the front panel. Analogue and coaxial digital (S/PDIF) audio breakout allows for audio integration, HDCP2.3 compliant, and advanced EDID management.
Key Features:
- 2 x selectable HDMI 2.1 inputs that are split to 4x HDMI outputs.
- Supports HDMI 2.1 specification including HDR (40Gbps maximum)
- Supports ALLM (Auto Low Latency Mode) & VRR (Variable Refresh Rate)
- Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission.
- Auto HDMI source switching via 5V and/or TMDS signal sensing
- Manual HDMI source switching via front panel and IR
- Audio breakout to analogue L/R audio and Coaxial (S/PDIF) digital outputs concurrently
- 5V/12V IR compatible
- HDCP 2.3 compliant with advanced EDID management
