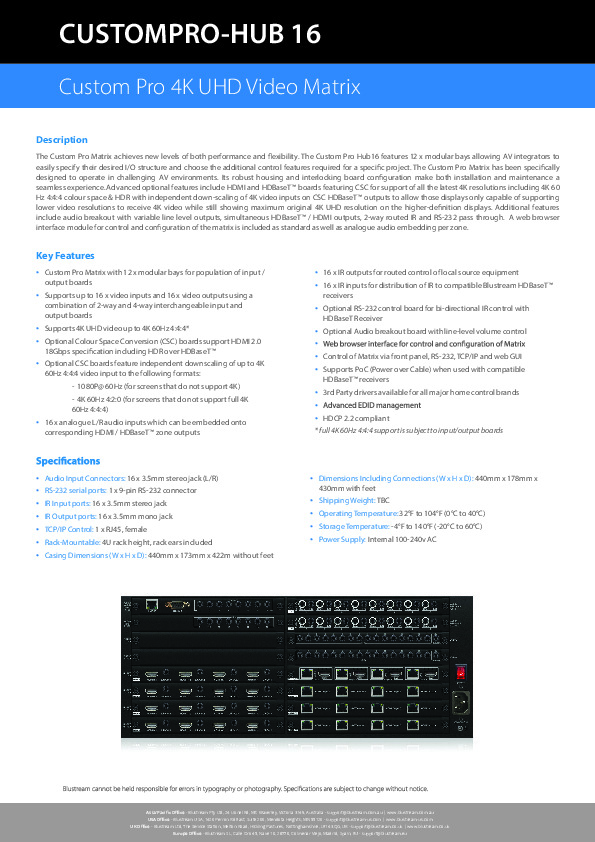

Custom Pro Matrix Hub featuring 12 x Modular Bays, Line Level Audio Inputs, PoC, HDCP 2.2, Bi-directional IR, Front Panel Touch Control & Web GUI
Main features:
- Custom Pro Matrix with 12 x modular bays for population of input / output / control boards
- Supports up to 16x video inputs and 16x video outputs using a combination of 2-way and 4-way interchangeable input and output boards
- Supports 4K UHD video up to 4K 60Hz 4:4:4*
- Optional Colour Space Conversion (CSC) boards support HDMI 2.0 18Gbps specification including HDR over HDBaseT™
- Optional CSC boards feature independent downscaling of up to 4K 60Hz 4:4:4 video input to the following formats:
- 1080p @ 60Hz (for screens that do not support 4K)
- 4K 60Hz 4:2:0 (for screens that do not support full 18Gbps 4K 60Hz 4:4:4)
- 16 x analogue L/R audio inputs which can be embedded onto corresponding HDMI / HDBaseT™ zone outputs
- 16 x IR outputs for routed control of local source equipment
- 16 x IR inputs for distribution of IR to compatible Blustream HDBaseT™ Receivers
- Optional RS-232 control board for bi-directional IR control with Blustream HDBaseT™ Receivers
- Optional Analogue and Digital Audio breakout board with line-level volume control
- Web browser interface for control and configuration of Matrix
- Control of Matrix via front panel, RS-232, TCP/IP, IR and Web GUI
- Supports PoC (Power over Cable) when used with compatible Blustream HDBaseT™ Receivers
- 3rd Party drivers available for major control brands
- Advanced EDID management
- HDCP 2.2 compliant
*Full 4K 60Hz 4:4:4 support is subject to input / output boards specified
